Practice Free 350-601 Exam Online Questions

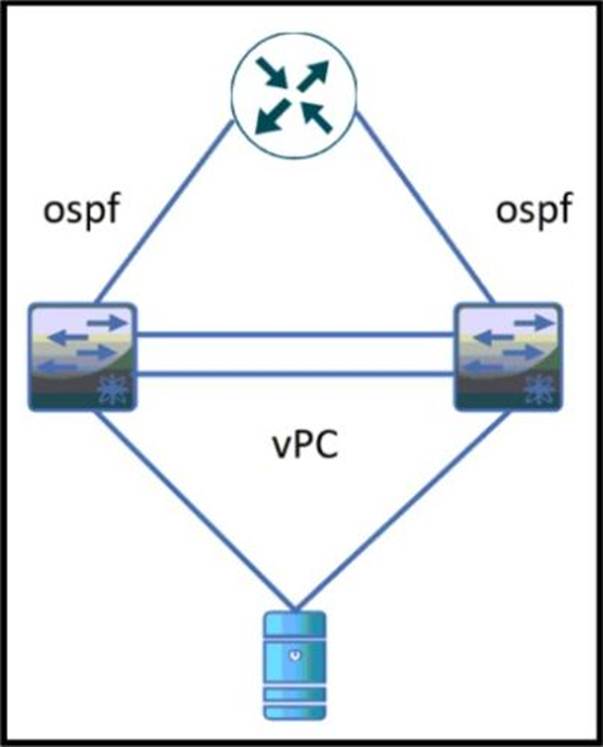

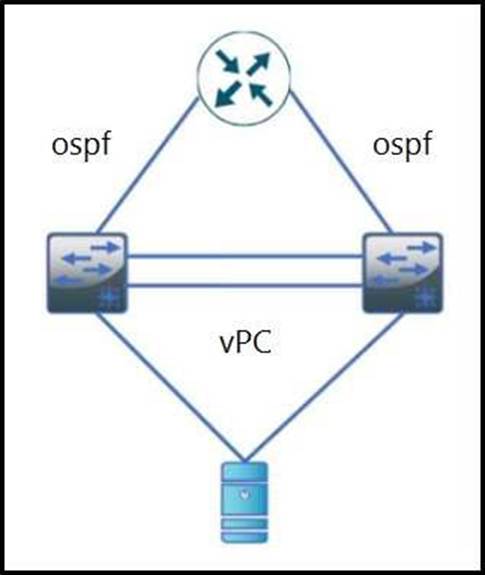

Refer to the exhibit.
During a vPC peer switch reload, there is packet loss between the server and the router.
Which action must be taken to prevent this behavior during future reloads?
- A . Set the routed uplink ports of the Cisco Nexus peers as orphans.
- B . Increase the vPC delay restore timer.
- C . Disable vPC ARP synchronize on the vPC peers.
- D . Decrease the OSPF hello and dead interval timers.

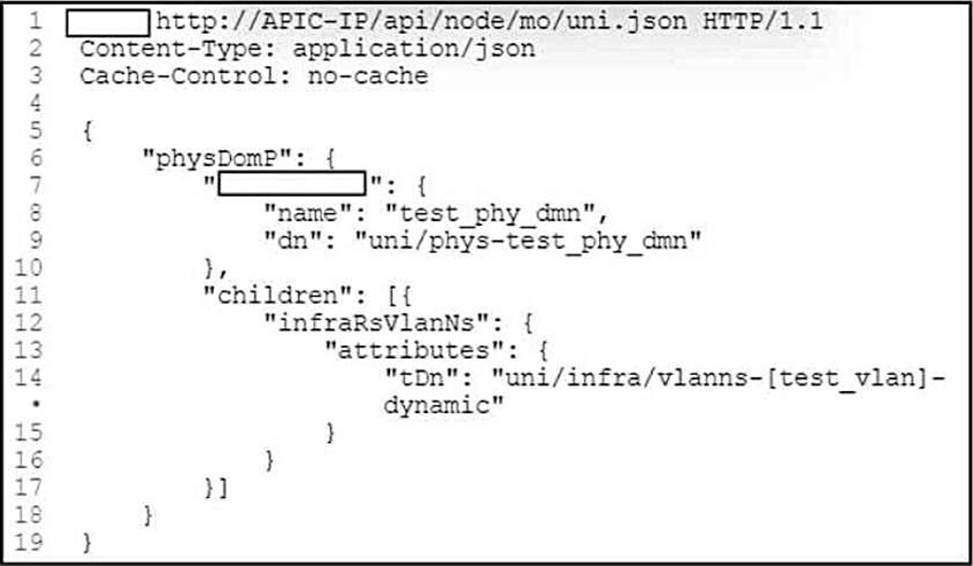

Refer to the exhibit.
A network engineer must configure the physical domain and attach a VLAN pool to it.
Which two commands accomplish this goal? (Choose two.)
- A . attributes
- B . PATCH
- C . GET
- D . POST
- E . variables
An engineer must apply AAA configuration on a Cisco MDS 9000 Series Switch.
The solution must meet these conditions:
✑ It must use a challenge-response authentication protocol that uses MD5 hashing with an incrementally changing identifier.
✑ The RADIUS configuration must be automatically shared with other MDS switches in the environment.
The RADIUS server is already defined.
Which command set completes the configuration?
- A . aaa authentication login chap enable radius distribute radius commit
- B . aaa authentication login pap enable distribute radius radius-server host 10.8.8.0 auth-port 1821
- C . aaa authentication login mschapv2 enable radius propagate radius authentication port 1821
- D . aaa authentication login mschap enable radius commit radius-server host 10.8.8.0
An engineer must configure device aliases for a Cisco MDS 9000 Series Switches-based SAN fabric.
The configuration must meet these requirements:
• The engineer must be prompted before the changes are committed to the database.
• Pending changes must be explicitly displayed on the console.
Which command accomplishes this task?
- A . device-alias enhanced
- B . device-alias commit
- C . device-alias confirm-commit
- D . device-alias distribute diffs-only
An engineer must configure Cisco IMC server management NIC for auto negotiation.
Which setting should be selected?
- A . shared LOM
- B . Cisco card
- C . dedicated
- D . shared LOM EXT
An engineer must configure a VXLAN routing on a Cisco Nexus 9000 Series Switch. The engineer requires a solution where all the leaf switches have the same gateway MAC and IP addresses.
Which configuration set accomplishes this task?
- A . NX9K(config)# fabric forwarding anycast-gateway-mac AA: BB: AA: BB: AA: BB
NX9K(config)# interface VLAN-interface-name
NX9K(config-if)# vrf member vrf-name
NX9K(config-if)# fabric forwarding mode anycast-gateway - B . NX9K(config)# install feature-set fabric
NX9K(config)# feature-set fabric
NX9K(config)# fabric forwarding anycast-gateway-mac AA: BB: AA: BB: AA: BB
NX9K(config)# interface VLAN-interface-name
NX9K(config-if)# fabric forwarding mode anycast-gateway - C . NX9K(config)# install feature-set fabric
NX9K(config)# feature-set fabric
NX9K(config)# fabric forwarding anycast-gateway-mac AA: BB: AA: BB: AA: BB
NX9K(config)# interface VLAN-interface-name
NX9K(config-if)# vrf member vrf-name
NX9K(config-if)# fabric forwarding mode anycast-gateway - D . NX9K(config)# fabric forwarding anycast-gateway-mac AA: BB: AA: BB: AA: BB
NX9K(config)# interface VLAN-interface-name
NX9K(config-if)# fabric forwarding mode anycast-gateway

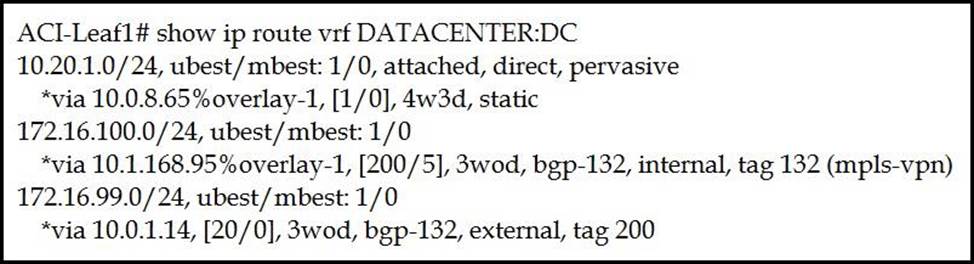

Refer to the exhibit.
Which two statements about the routing table of the leaf switch are true? (Choose two.)
- A . 10.20.1.0/24 is a BD subnet in ACI.
- B . The next hop 10.0.1.14 for route 172.16.99.0/24 is the TEP address of a border leaf in ACI.
- C . 172.16.100.0/24 is a BD subnet in ACI.
- D . The next hop 10.1.168.95 for route 172.16.100.0/24 is the TEP address of a border leaf in ACI.
- E . The next hop 10.0.8.65 for route 10.20.1.0/24 is the TEP address of a border leaf in ACI.

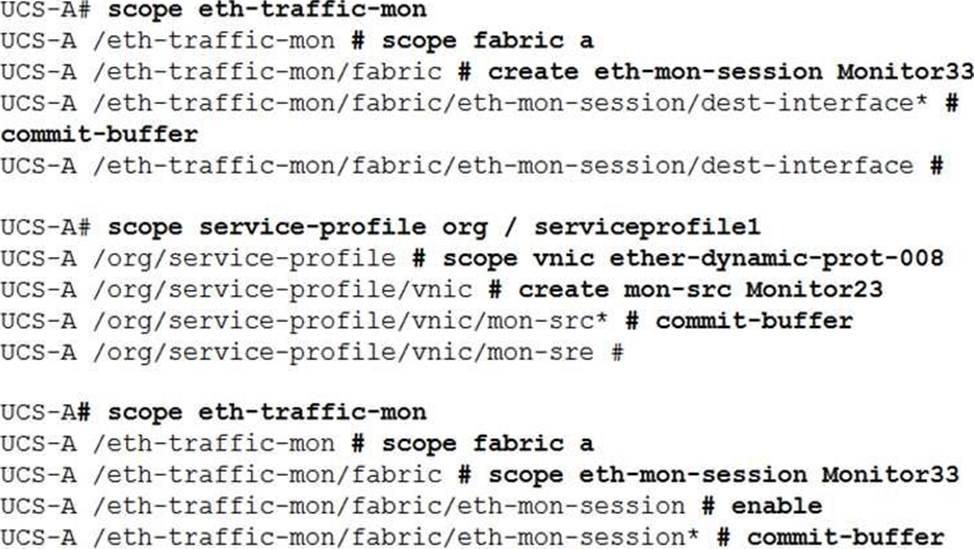

Refer to the exhibit.
Service degradation is reported on a VM that is deployed on a Cisco UCS B-Series Server. The traffic from the vNIC is required to SPAN in both directions to a packet analyzer that is connected to UCS-A slot 2 port 12.
Which two commands are needed to complete the configuration? (Choose two.)
- A . UCS-A /org/service-profile/vnic/mon-src* # set direction receive transmit
- B . UCS-A /eth-traffic-mon/fabric/eth-mon-session* # create dest-interface 2 12
- C . UCS-A /eth-traffic-mon/fabric/eth-mon-session # activate
- D . UCS-A /eth-traffic-mon/fabric/eth-mon-session* # create eth-mon-session/dest-interface 2 12
- E . UCS-A /org/service-profile/vnic/mon-src* # set direction both

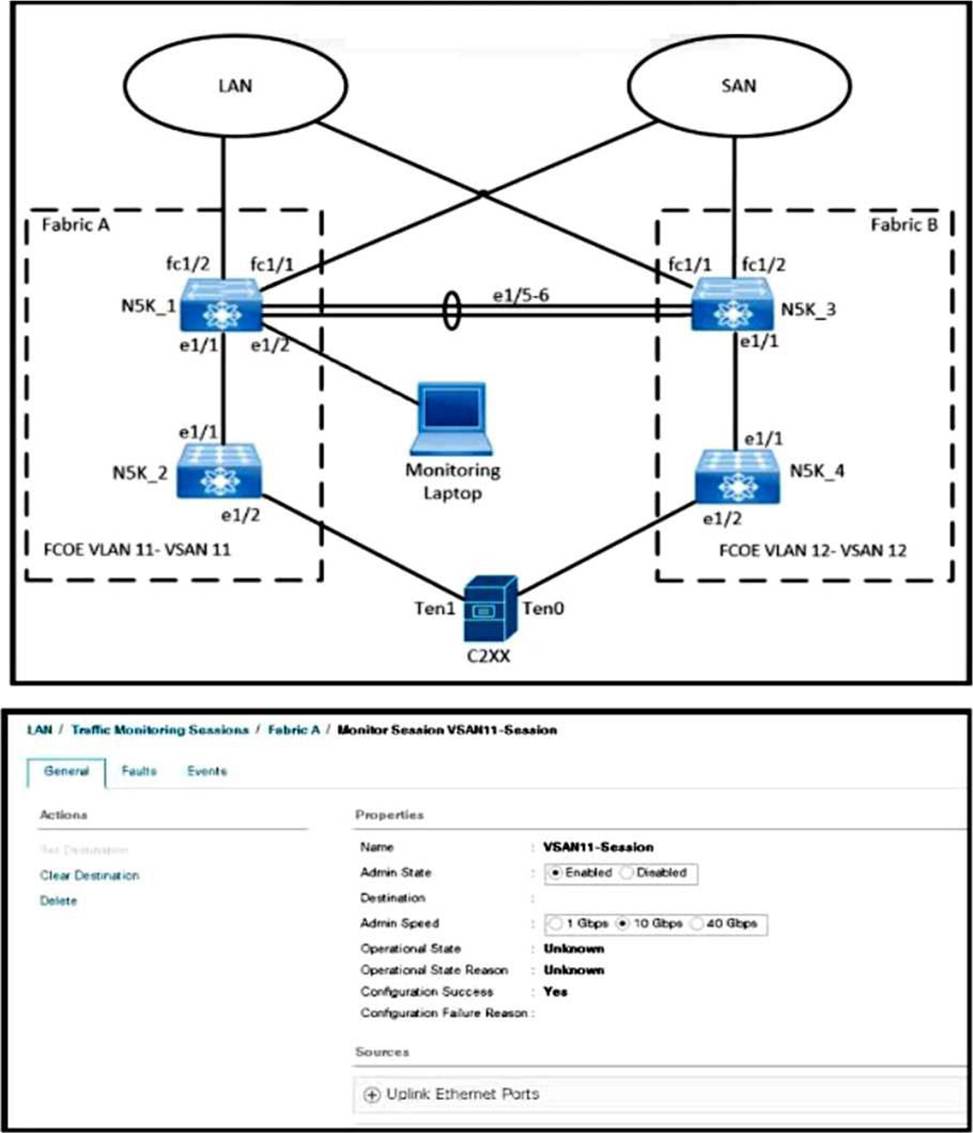

Refer to the exhibit.
An engineer is creating a SPAN session to send a copy of all the Fabric-A VSAN 11 traffic on N5K_1 to the monitoring laptop. The configuration that presented has already been applied to Cisco UCS Manager.
Which action competes the configuration?
- A . Create a SAN traffic monitoring session.
- B . Set VLAN 11 as the traffic destination.
- C . Activate a NetFlow monitoring session.
- D . Select VSAN 1 as the source of traffic.
An engineer changed a configuration and must perform a rollback.
Which statement applies to a Cisco Nexus 5600 Series Switch?
- A . The configuration rollback functionality is disabled when FCoE is enabled.
- B . A system checkpoint is generated automatically when the running configuration is saved to NVRAM.
- C . A user who is assigned to the network-operator user role is allowed to perform a rollback.
- D . Errors are skipped when an atomic rollback type is triggered.
