Practice Free 350-601 Exam Online Questions
An engineer must configure a monitoring solution for a Cisco Nexus 9000 Series Switch based data center. The solution must provide real-time insight into the network health with subscription-based monitoring. The monitoring must be initiated from the client side, and the data must be sent via encryption.
Which configuration steps complete the configuration?
- A . Configure Grafana on the Nexus switch. Specify the logging certificate. Enable syslog level 7 export to Grafana.
- B . Set the telemetry feature on the Nexus switch. Specify a certificate for telemetry transport. Configure a sensor group and destination.
- C . Activate SNMPv3 on the Nexus switch. Set the globalEnforcePriv parameter. Configure an SNMP agent to poll information.
- D . Enable GRPC on the Nexus switch. Generate a certificate. Configure gNMI inputs in Telegraf and output to InfluxDB.
Which Cisco UCS component does an infra bundle "A" software upgrade?
- A . adapter
- B . BIOS
- C . board controller
- D . I/O module
What is a characteristic of EPLD updates on Cisco MDS 9000 Series Switches?
- A . EPLD bundles are released separately from a Cisco MDS NX-OS release
- B . EPLD packages update hardware functionality on a device
- C . EPLD updates are nondisruptive to traffic flow
- D . EPLD updates are installed only via the Cisco DCNM GUI
DRAG DROP

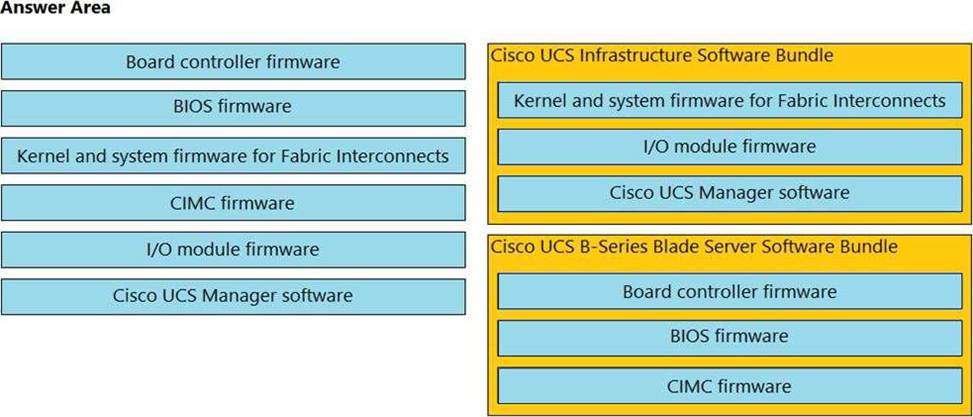

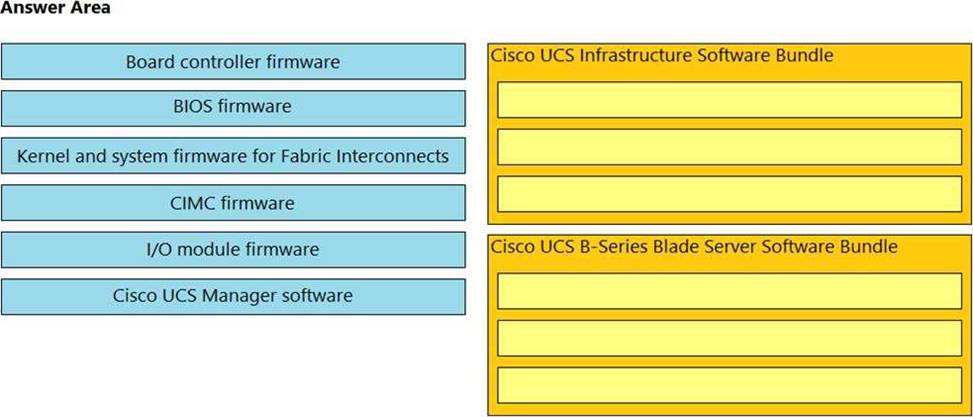

Drag and drop the firmware packages from the left onto the software bundles they belong to on the right.
DRAG DROP

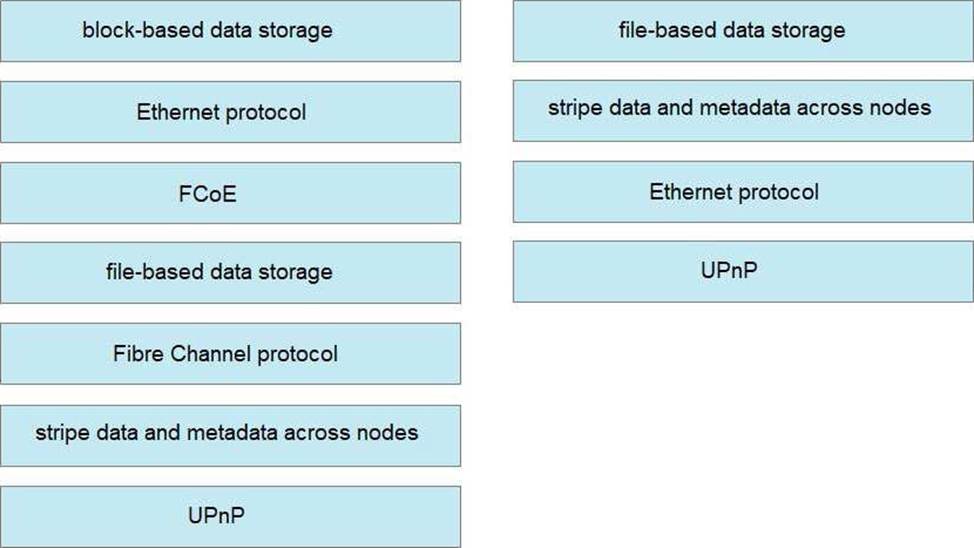

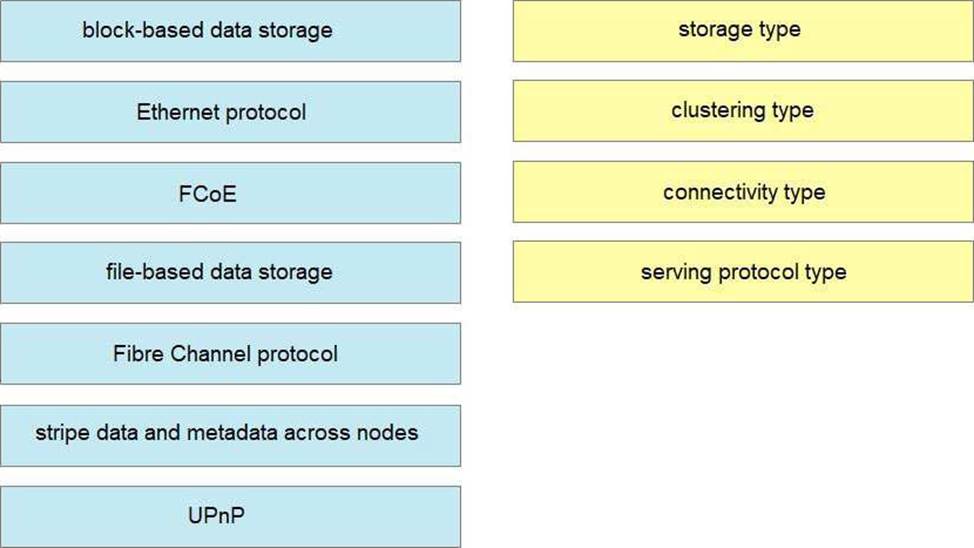

Drag and drop the NAS features from the left onto the NAS descriptions on the right. Not all features are used.

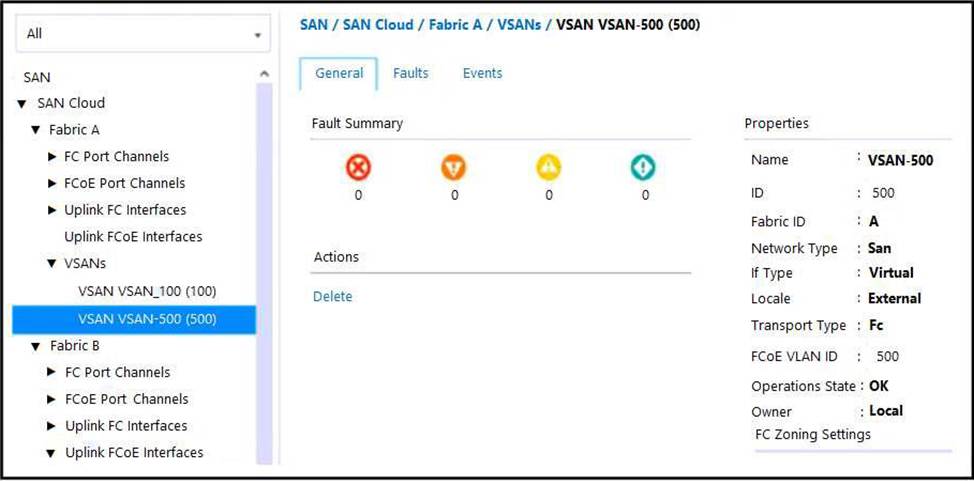

Refer to the exhibit.
An engineer configures an FCoE connection between a Cisco UCS and a Cisco Nexus 9000 Series Switch. The UCS FI-A connects to the Nexus switch using interface e1/12. All relevant configurations have been completed on the Nexus switch to support FCoE deployment.
Which action must be taken on Cisco UCS Manager to complete the configuration?
- A . Trunk VLAN 500 on interface e1/12.
- B . Create a Virtual Fibre Channel Interface.
- C . Change the Transport Type to FCoE.
- D . Configure an FCoE uplink interface.
DRAG DROP

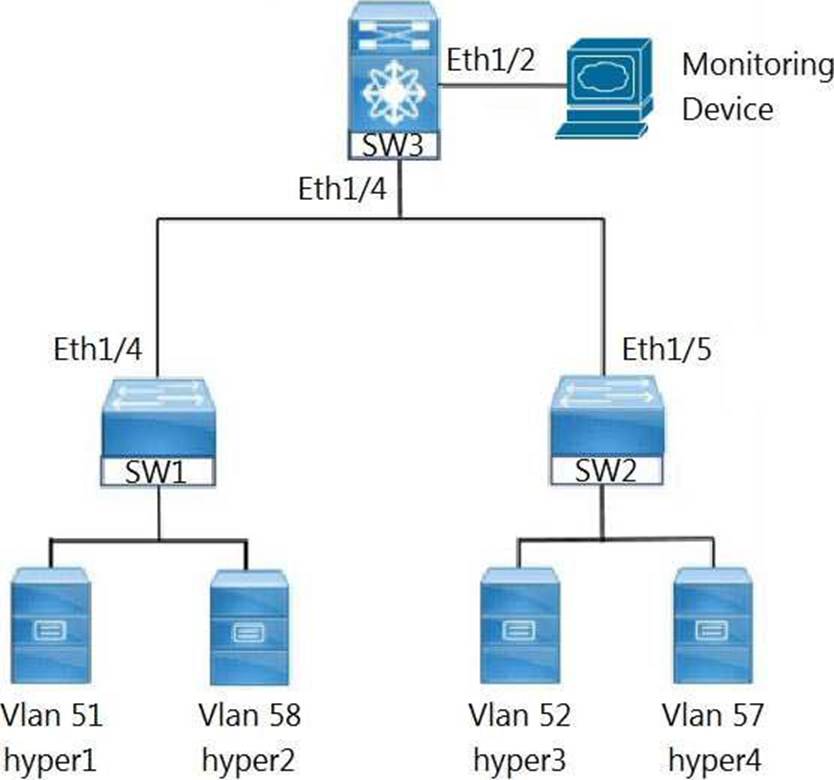

Refer to the exhibit.
An engineer must monitor the Ethernet port and the corresponding VLAN traffic for the hyper4 device. The SW3 device is a Cisco Nexus 7000 Series Switch.

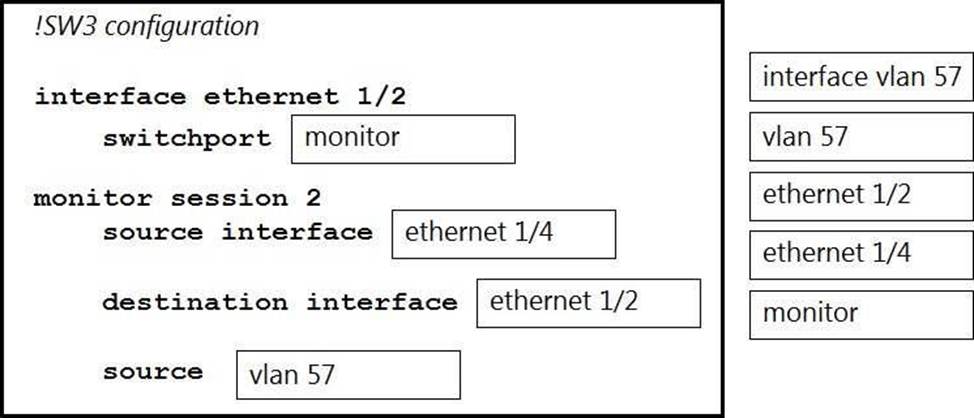

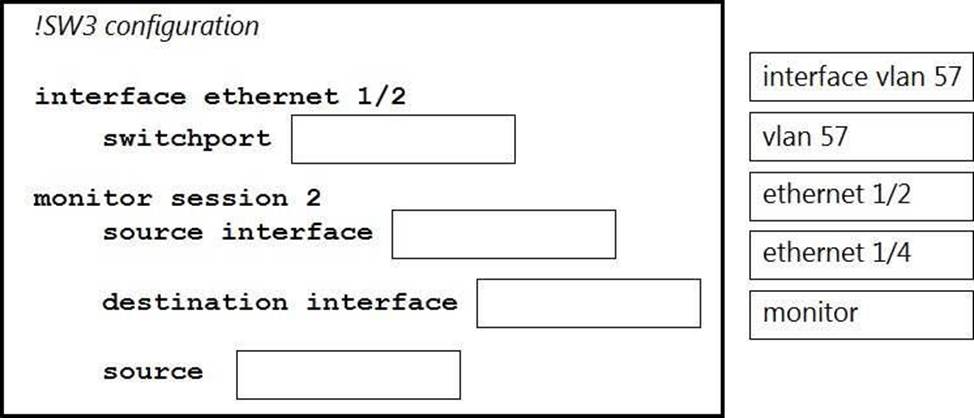

Drag and drop the code snippets from the right into the boxes in the configuration to meet these requirements.
An engineer must implement a disaster recovery policy for the Cisco UCS infrastructure.
The solution must meet these criteria:
✑ The Recovery Point Objective must be 48 hours.
✑ The backup must use encrypted transmission.
✑ The Recovery Time Objective must be 4 hours.
Which configuration set must be used in the scheduled backup to meet these requirements?
- A . Protocol: FTP Schedule: Bi-Weekly
- B . Protocol: SFTP Schedule: Weekly
- C . Protocol: TFTP Schedule: Bi-Weekly
- D . Protocol: SCP Schedule: Daily
What are two capabilities of the Cisco Network Assurance Engine? (Choose two.)
- A . It validates that devices comply with network security policies.
- B . It predicts the impact of changes to the network.
- C . It predicts the network load on a data center.
- D . It ensures that network performance meets an SLA.
- E . It verifies the speed of network packet flows by using telemetry.
DRAG DROP
A network engineer must configure FCoE on an interface of a Cisco MDS 9000 Series Switch. It should be used for mapping between VLAN 600 and VLAN 6.
Drag and drop the commands from the bottom into their implementation order in the FCoE configuration. Not all commands are used.
