Practice Free 350-601 Exam Online Questions
An engineer must configure a Cisco UCS blade system that is managed by Cisco UCS Manager. All four connected interfaces between the blade system and the fabric interconnects must be used. Additionally, the connectivity must tolerate any link failure between the I/O module and the fabric interconnects.
Which action accomplishes these requirements?
- A . Configure chassis/FEX discovery policy action to four links.
- B . Configure port aggregation with LACP policy set to default.
- C . Configure Link Group Preference to Port Channel.
- D . Configure Firmware Auto Sync Server policy to Auto Acknowledge.
Which virtualization feature is provided by network-attached storage?
- A . raw device passthrough
- B . VM cluster shared ask
- C . hypervisor host boot LUN
- D . ALUA path redirection
Which virtualization feature is provided by network-attached storage?
- A . raw device passthrough
- B . VM cluster shared ask
- C . hypervisor host boot LUN
- D . ALUA path redirection
A Cisco IMC on the Cisco UCS C-Series Server must be configured with VLAN ID 110 and a priority value of 20.
Which command set meets these requirements?
- A . Server# scope cimc –
Server /cimc # scope vlan –
Server /cimc/network # enable vlan
Server /cimc/network *# set vlan-id 110
Server /cimc/network *# set vlan-priority 20
Server /cimc/network *# commit - B . Server# scope cimc –
Server /cimc # scope network –
Server /cimc/network # set vlan-enabled yes
Server /cimc/network *# set vlan-id 110
Server /cimc/network *# set vlan-priority 20
Server /cimc/network *# commit - C . Server# scope cimc –
Server /cimc # scope network –
Server /cimc/network # switchport mode trunk
Server /cimc/network *# switchport trunk native vlan 110
Server /cimc/network *# spanning-tree portfast
Server /cimc/network *# copy run start - D . Server# scope cimc –
Server /cimc # scope network –
Server /cimc/network # switchport mode access
Server /cimc/network *# switchport access 110
Server /cimc/network *# spanning-tree portfast
Server /cimc/network *# copy run start

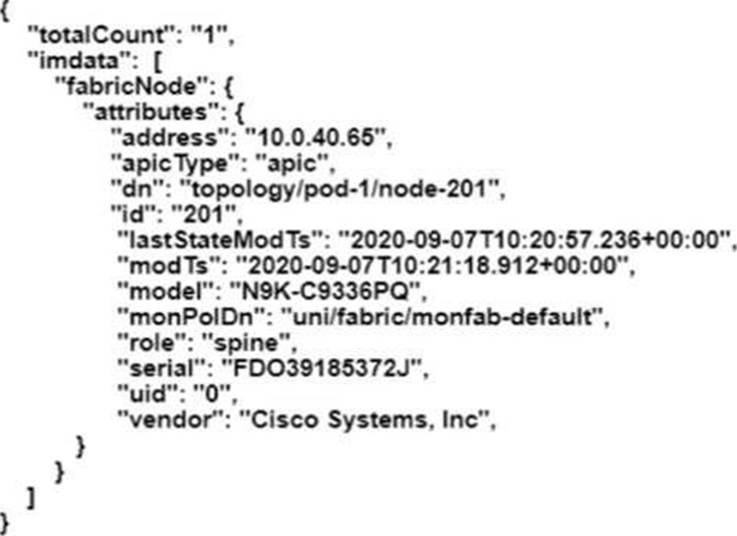

Which data interchange format is presented in this output?
- A . CSS
- B . YAML
- C . XML
- D . JSON
An engineer is implementing the Cisco ACI fabric and wants to reduce the amount of TCAM resources consumed by the fabric. The engineer also needs to ensure that all EPGs in a VRF consume the same services.
Which action should be taken to meet these requirements?
- A . Configure preferred groups in the VRF for all EPGs.
- B . Implement an unenforced VRF.
- C . Implement vzAny feature.
- D . Configure a single contract provided and consumed in all EPGs.
An engineer must configure multiple EPGs on a single access port in a large Cisco ACI fabric without using VMM integration. The relevant access policies and tenant policies have been created. A single AAEP is used to configure the access ports in the fabric.
Which two additional steps must be taken to complete the configuration? (Choose two.)
- A . The EPGs must link directly to the corresponding AAEP
- B . A contract must be defined between the EPGs
- C . The EPGs must be configured as static ports
- D . The corresponding bridge domains must be configured in legacy mode
- E . The EPGs must be linked to the correct physical domain

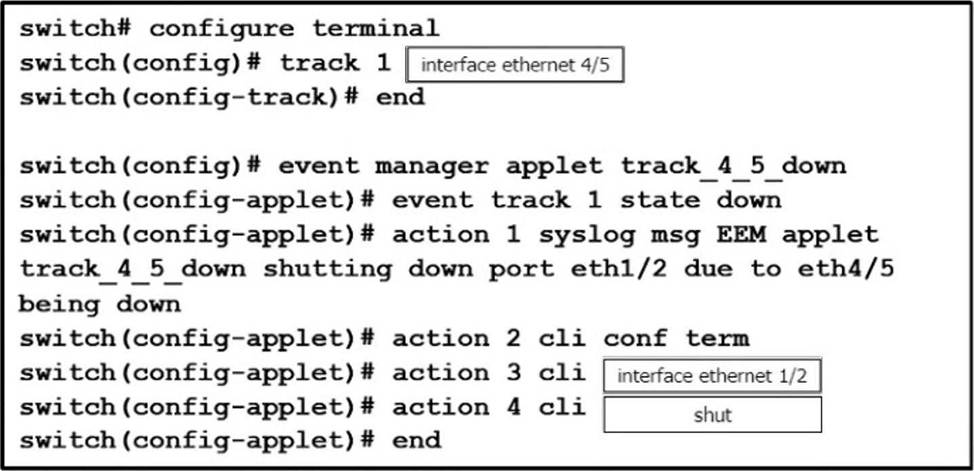

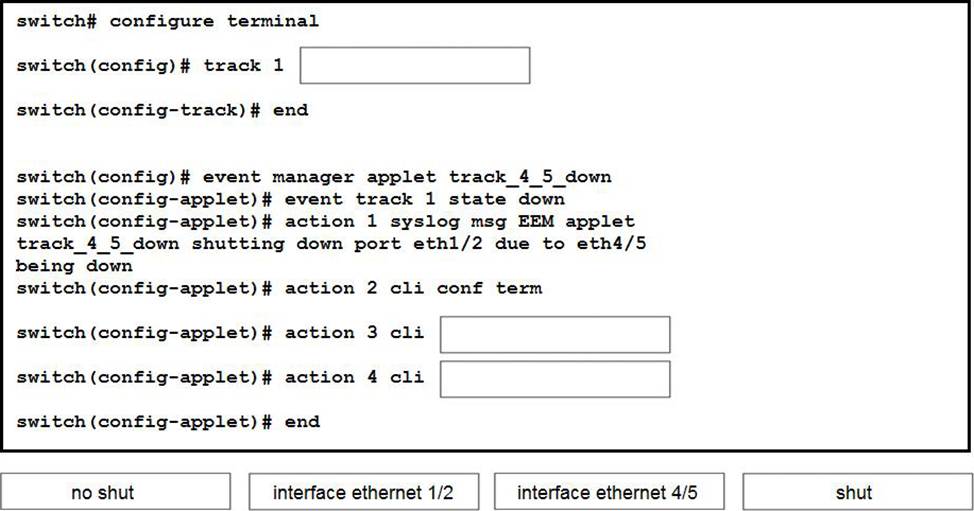

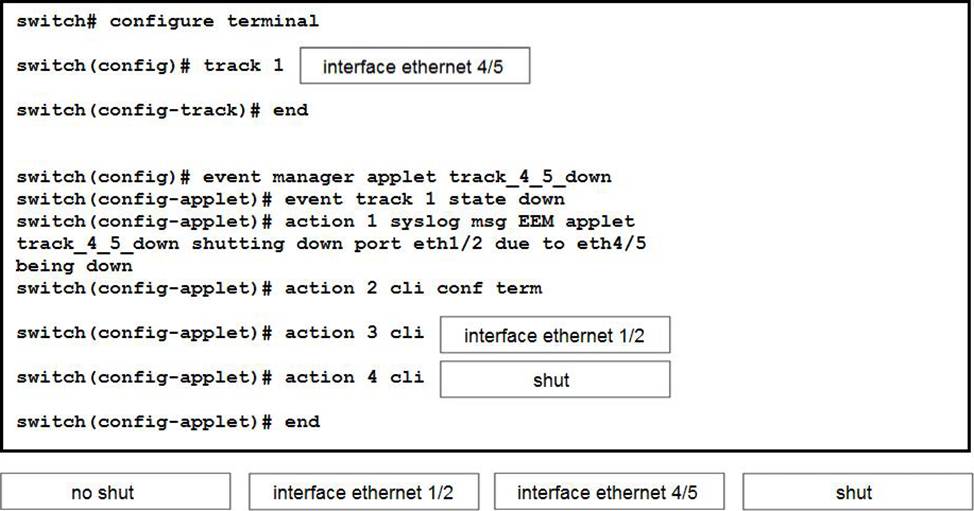

DRAG DROP
An engineer must shut down the Ethernet 1/2 interface when the Ethernet 4/5 interface state is down.
Drag and drop the CLI commands from the bottom onto the blanks in the exhibit to implement this EEM. Not all commands are used.

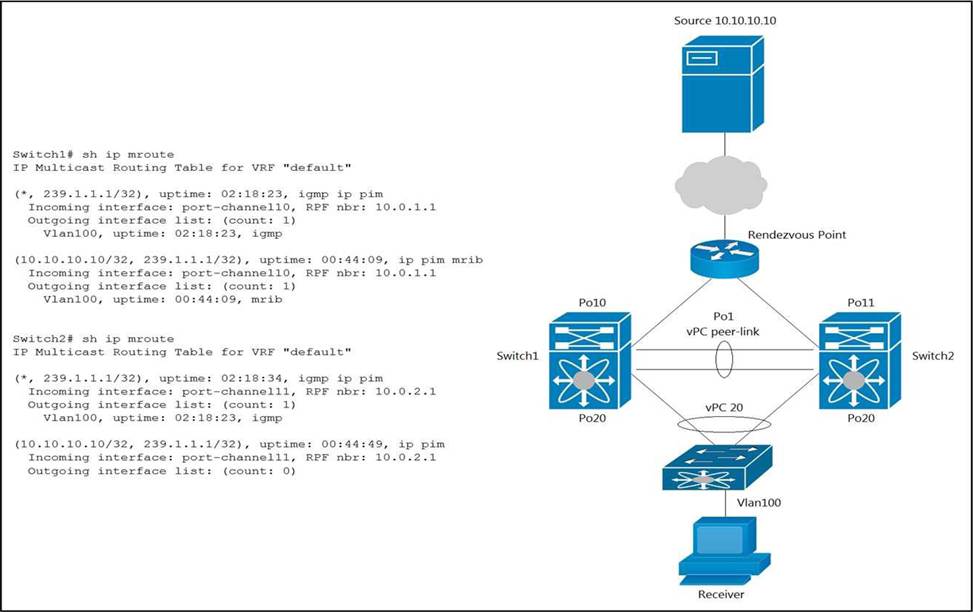

Refer to the exhibit.
A host with a source address 10.10.10.10 sends traffic to multicast group 239.1.1.1.
How do the vPC switches forward the multicast traffic?
- A . If multicast traffic is received on Switch1 over the vPC peer-link, the traffic is dropped
- B . If multicast traffic is received on Po10 Switch1, the traffic is forwarded out on Po1 and Po20
- C . If multicast traffic is received on Po11 Switch2, the traffic is forwarded out only on Po20
- D . If multicast traffic is received on Po11 Switch2, the traffic is dropped.
Refer to the exhibit.
SVR-A in EPG-A/BD-A fails to reach SVR-B in EPG-B/BD-B.
Which two conditions should be verified to analyze the traffic between the two EPGs? (Choose two.)
- A . A contract exists between EPG-A and EPG-B and allows the traffic.
- B . The bridge domain for EPG-B floods ARP packets.
- C . EPG-A and EPG-B are excluded from the preferred group.
- D . Limit Endpoint Learning is disabled on the bridge domain for EPG-B.
- E . SVR-B is learned as an endpoint in EPG-B from Node-112.
