Practice Free 350-601 Exam Online Questions

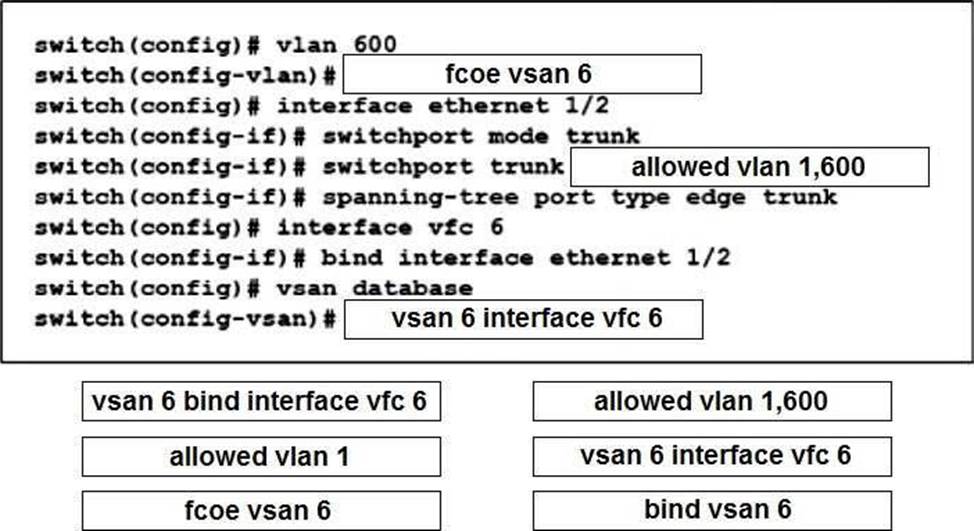

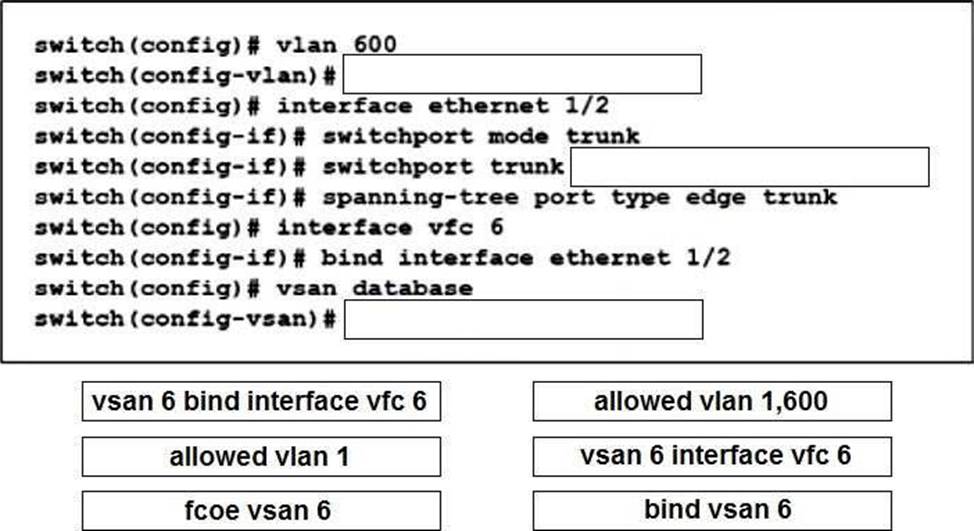

DRAG DROP
A network engineer must configure FCoE on an interface of a Cisco MDS 9000 Series Switch. It should be used for mapping between VLAN 600 and VLAN 6.
Drag and drop the commands from the bottom into their implementation order in the FCoE configuration. Not all commands are used.
Which two settings must be configured before enabling a Cisco UCS Manager domain for Cisco Intersight connectivity? (Choose two.)
- A . SMTP servers
- B . SMTP reply-to address
- C . NTP servers
- D . syslog redirection
- E . DNS servers
Which two settings must be configured before enabling a Cisco UCS Manager domain for Cisco Intersight connectivity? (Choose two.)
- A . SMTP servers
- B . SMTP reply-to address
- C . NTP servers
- D . syslog redirection
- E . DNS servers
A network engineer needs to configure system logging on the Cisco MDS Series switch. The messages must be displayed with the severity level of `warning` and above. For security reasons, the users must be logged out of the console after 5 minutes of inactivity.
Which configuration must be applied to meet these requirements?
- A . MDS-A(config)# logging console 5
MDS-A(config-console)# exec-timeout 300 - B . MDS-A(config)# line console
MDS-A(config-console)# speed 38400
MDS-A(config-console)# exec-timeout 5
MDS-A(config)# logging console 4 - C . MDS-A(config)# logging line 4
MDS-A(config-console)# session-limit 300 - D . MDS-A(config)# console
MDS-A(config-console)# speed 38400
MDS-A(config-console)# session-limit 5
MDS-A(config)# logging console 5
An engineer must implement protection against ICMP DoS attacks on a Cisco Nexus 9000 Series Switch. The requirement is to rate-limit ICMP without denying all other ICMP traffic. The ICMP traffic currently passing through the Cisco Nexus 9000 device must not be affected.
Which configuration accomplishes these goals?
- A . Reconfigure the Layer 3 interfaces to be in the non-default VRF and ICMP broadcast storm control.
- B . Create an access list deny ICMP traffic and apply it to all interfaces in the inside direction.
- C . Apply a control plane service policy that matches all ICMP traffic to drop the traffic that exceeds the threshold.
- D . Configure SNMP traps to send the ICMP notification if the CPU utilization is more than 90%.

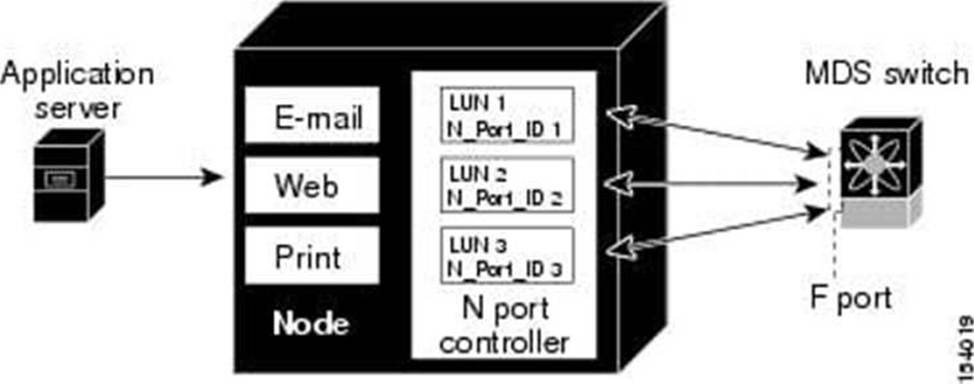

An engineer is converting a Cisco MDS switch to support NPIV mode.
What should be considered when implementing the solution?
- A . It requires mapping of external interface traffic.
- B . It must be enabled on VSAN 1 only.
- C . It must be enabled globally on all VSANs.
- D . It requires the FLOGI database to be disabled.
An engineer is converting a Cisco MDS switch to support NPIV mode.
What should be considered when implementing the solution?
- A . It requires mapping of external interface traffic.
- B . It must be enabled on VSAN 1 only.
- C . It must be enabled globally on all VSANs.
- D . It requires the FLOGI database to be disabled.

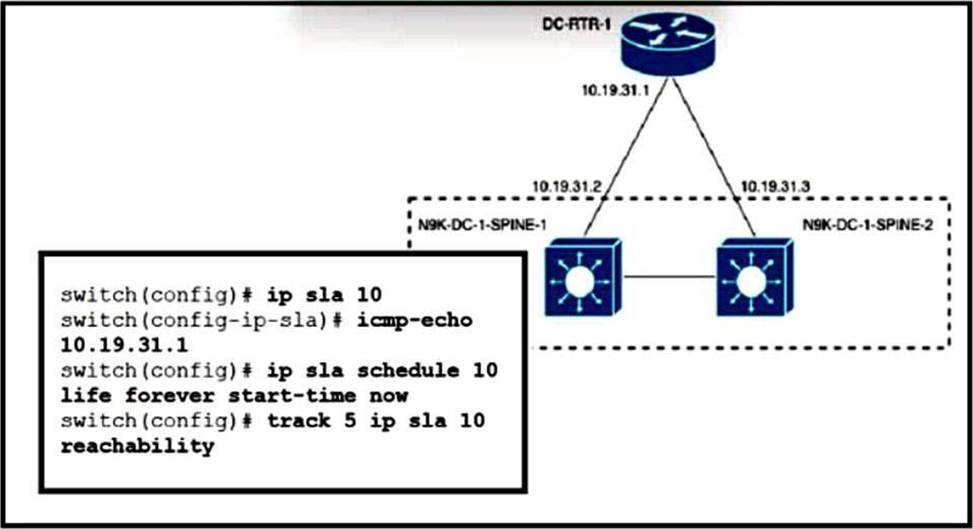

Refer to the exhibit.
An engineer must invoke a Python script that alerts the operations team when the router DC-RTR-1 becomes unreachable.
Which configuration set accomplishes this task?
- A . event scheduler name DOWN-ROUTER event track 2 state 1 not up event action 1.0 command source routerdown.py event start 0:00 repeat 0:05
- B . track 3 ip sla 10 reachability event name GATEWAY-DOWN event state down action cli command routerdown.py
- C . event manager applet ROUTER-DOWN-SLA event track 5 state down action 1.0 event-default action 2.0 cli command source routerdown.py
- D . scheduler job name ROUTER-DOWN job track 9 state down action 1.0 cli source routerdown.py schedule 10
Port security is enabled on a Cisco MDS 9000 Series Switch.
Which statement is true?
- A . Port security can be enabled only globally and affects all VSANs.
- B . Any devices currently logged in must be added manually to the device database.
- C . Auto-learning is always enabled automatically when port security is enabled.
- D . Cisco Fabric Services must be disabled before enabling port security.
A network engineer must enable port security on all Cisco MDS Series Switches in the fabric. The requirement is to avoid the extensive manual configuration of the switch ports.
Which action must be taken to meet these requirements?
- A . Enable the auto-learning port security feature.
- B . Enable the auto-learning port security feature on a per-VSAN basis.
- C . Activate CFS distribution and the auto-learning port security feature.
- D . Activate CFS distribution and the auto-learning port security feature on a per-VSAN basis.
