Practice Free 350-601 Exam Online Questions

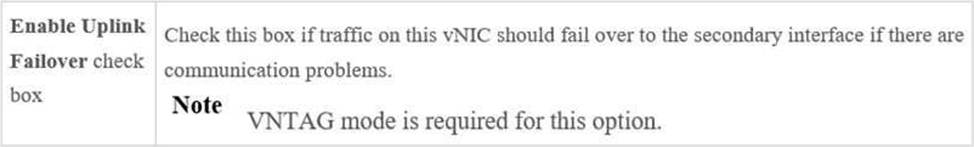

An engineer configures the properties of a Cisco UCS Cisco Integrated Management Controller network adapter for a standalone Cisco C-Series Server. The Failback Timeout in the vNIC was set to 600. When the failure occurs, the secondary interfaces must be used and then failback when the primary interface becomes available again.
Which action must be taken to meet these requirements?
- A . Set default VLAN on the adapters.
- B . Increase CoS to 6.
- C . Enable Uplink Failover.
- D . Disable VNTAG mode.
A customer deploys a media server to distribute streaming videos to network clients. The requirement is to allow the video feed to reach only requesting clients. The shared trees must not propagate the video feed if no clients from that tree request it. To reduce configuration touchpoints, the solution must support the automatic discovery and announcement of RP-set information. Each router in the network is responsible for selecting the RP.
Which configuration set meets these requirements?
- A . router(config-if)# ip pim bidir-enable
router(config)# ip pim ssm default
router(config)# ip igmp version 3 - B . router(config-if)# ip pim dense-mode
router(config)# ip pim rp-address 1.1.1.1
router(config)# ip pim rp listener - C . router(config-if)# ip pim sparse-sense mode
router(config)# ip pim auto-rp
router(config)# ip pim send-rp-announce - D . router(config-if)# ip pim sparse mode
router(config)# ip pim bsr-candidate Lo0
router(config)# ip pim rp-candidate Lo0

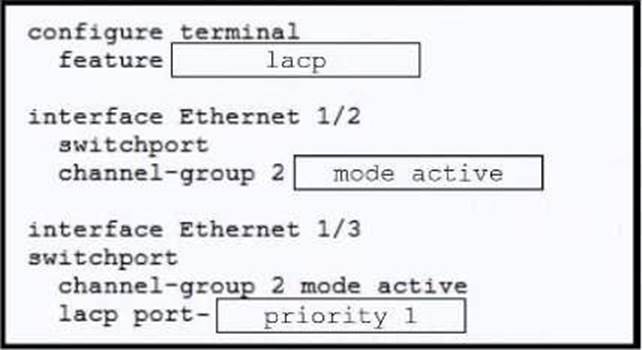

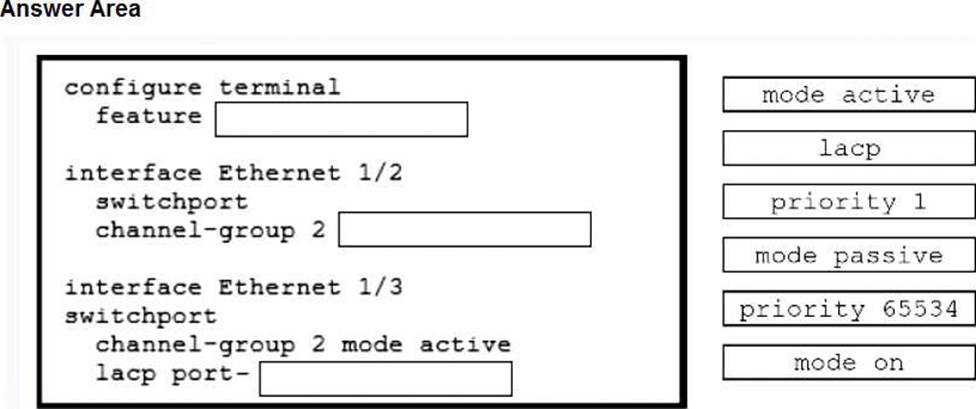

DRAG DROP
An engineer must configure an LACP port channel on two Cisco Nexus 9000 Series Switches. The interface e1/2 must be a hot-standby link that initiates negotiation with other ports.
Drag and drop the commands from the right onto the blanks in the configuration on the left. Not all commands are used.

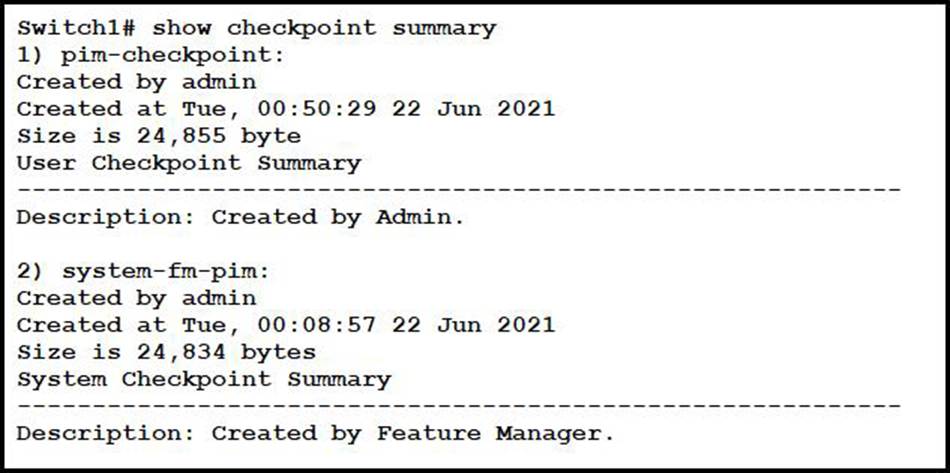

Refer to the exhibit.
Which command must be used to restore configuration changes made by disabling the PIM feature and skipping any errors?
- A . rollback running-config checkpoint system-fm-pim best-effort
- B . rollback running-config checkpoint system-fm-pim atomic
- C . rollback running-config checkpoint new-checkpoint verbose
- D . rollback running-config checkpoint new-checkpoint stop-at-first-failure
An engineer is asked to use SaaS to manage Cisco computing.
Which two items are needed to accomplish the task? (Choose two.)
- A . Intersight
- B . UCS Central
- C . Device/Claim ID
- D . Node name/Serial Number
- E . UCS Manager
An engineer needs to perform a backup of user roles and locales from Cisco UCS Manager to replicate the setting to a different fabric interconnect. The engineer wants to review the file before importing it to a target fabric interconnect.
Which backup type must be selected to meet these requirements?
- A . logical configuration
- B . full state
- C . system configuration
- D . all configuration

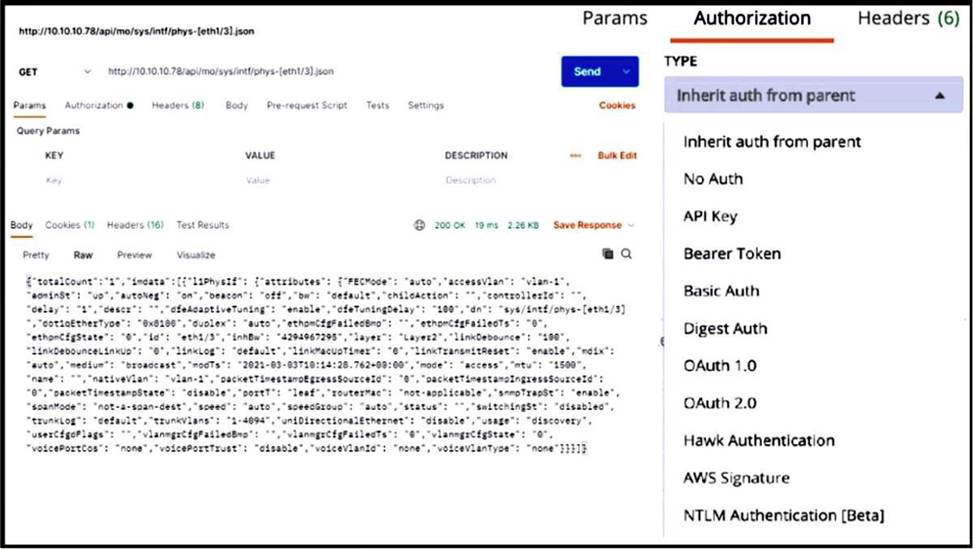

Refer to the exhibit.
Which feature must be implemented on Postman to receive the response from a Cisco Nexus 9000 Series Switch?
- A . API token in the APIC-cookie
- B . username and password in the Nexus-cookie
- C . username and password in the api/mo header
- D . certificate in the HTML Nexus-API header
An engineer is designing a cloud solution for an organization. The security requirements mandate that the cloud must be hosted in a local data center but leverage the remote data center for remote backups. Additionally, the workloads in the data center must be scaled out to a known cloud provider in the future.
Which cloud deployment model must be used to meet these requirements?
- A . public cloud
- B . hybrid cloud
- C . private cloud
- D . edge cloud
A company must security harden its Cisco UCS C-Series servers.
The security policy requires all out-of-band management to meet these requirements:
• It must encrypt all traffic
• It must use nondefault ports
• It must provide private administrative sessions.
Which Cisco IMC configuration meets the requirements?
- A . data1# scope sol
data1 /sol # set enabled yes
data1 /sol *# set encrypted tls1.2
data1 /sol *# set port 3389
data1 /sol *# set session max 2
data1 /sol *# set deny-local yes - B . data1# scope cimc
data1 /cimc # set enabled yes
data1 /cimc *# set encrypted tls
data1 /cimc *# set kvm-port 1972
data1 /cimc *# set max-sessions 1
data1 /cimc *# set local-session deny - C . data1# scope oob
data1 /oob # set enabled no
data1 /oob *# set encrypted yes
data1 /oob *# set kvm-port 2068
data1 /oob *# set max-sessions 1
data1 /oob *# set local-access no - D . data1# scope kvm
data1 /kvm # set enabled yes
data1 /kvm *# set encrypted yes
data1 /kvm *# set kvm-port 3168
data1 /kvm *# set max-sessions 1
data1 /kvm *# set local-video no

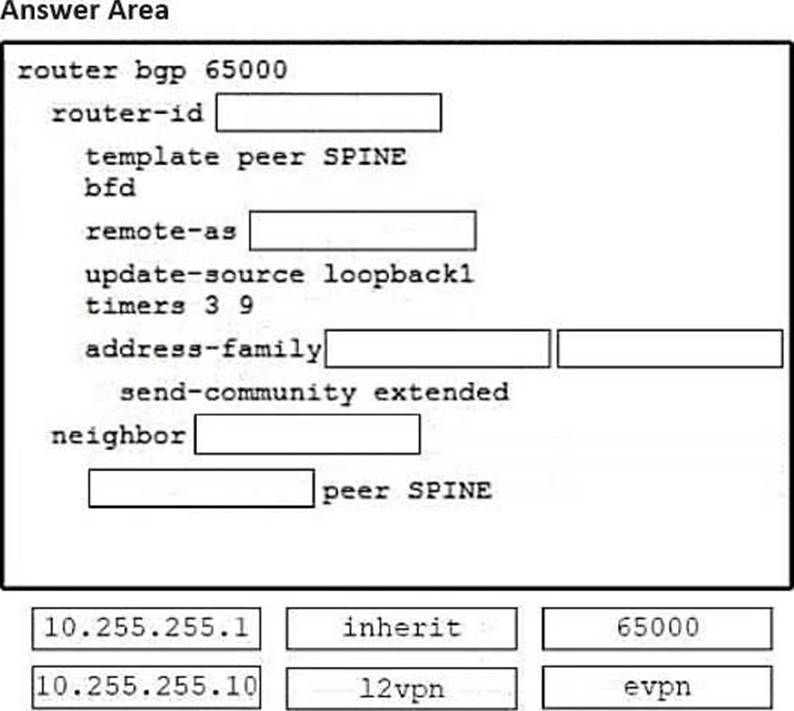

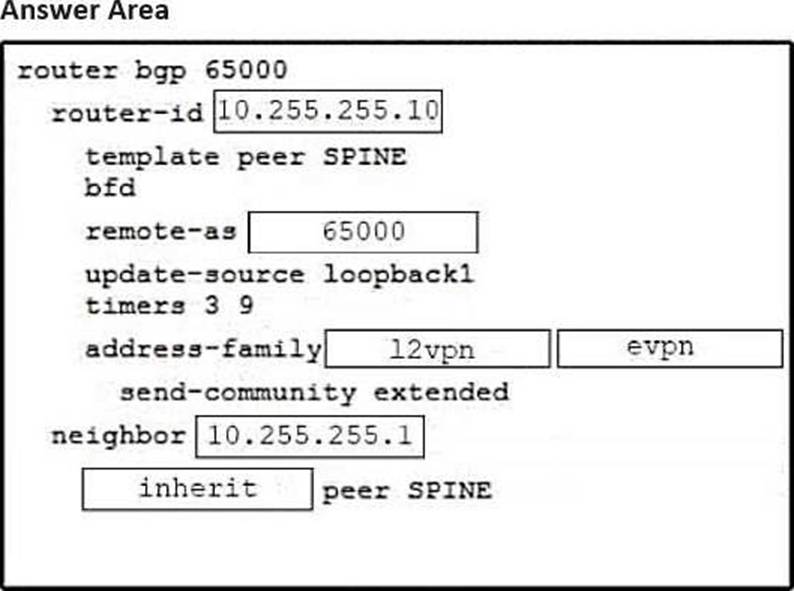

DRAG DROP

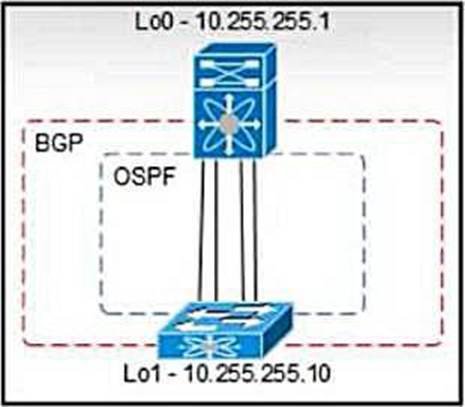

Refer to the exhibit.
An engineer must provision a VXLAN deployment. The OSPF has already been configured as the underlay protocol. All BGP configurations will be performed using the template method.
The deployment must meet these requirements:
• The local update source for leaf switches must be loopback1.
• The router ID must be the local loopback IP address.
• The external BGP connections must use a template name.
Drag and drop the configuration snippets from the bottom to complete the configuration.
