Practice Free 350-601 Exam Online Questions
An engineer is implementing OTV on a transport that supports multicast.
The solution needs to meet the following requirements:
✑ Establish adjacency to the remote peer by using multicast.
✑ Enable OTV advertisements for VLAN 100 to the other site.
Which two commands should be configured to meet these requirements? (Choose two.)
- A . otv extend-vlan 100
- B . otv site-vlan 100
- C . otv use-adjacency-server 172.27.255.94
- D . otv data-group 232.2.2.0/28
- E . otv control-group 232.1.1.1

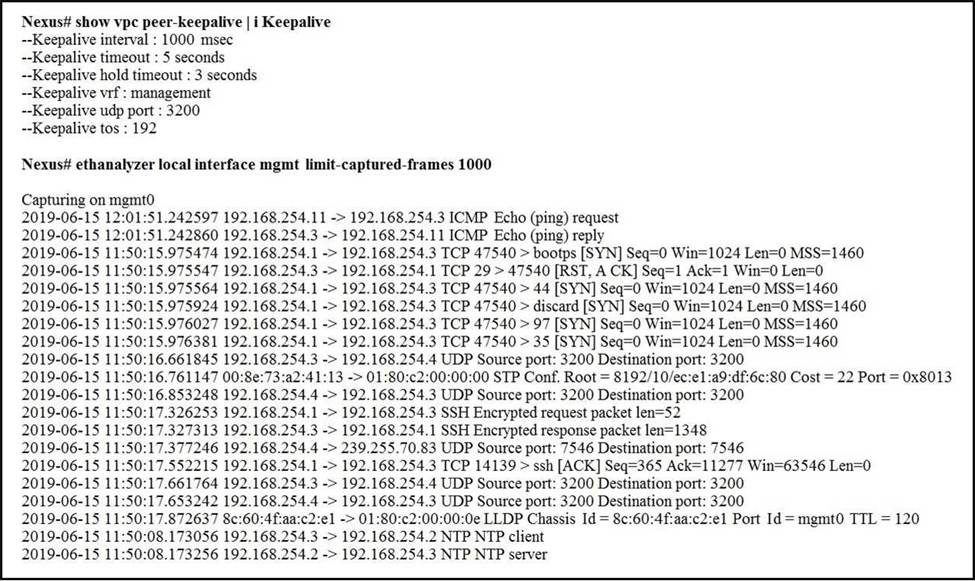

Refer to the exhibit.
A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch.
What is the destination IP address of the vPC keepalive packets that are sent by the switch?
- A . 192.168.254.4
- B . 192.168.254.1
- C . 192.168.254.2
- D . 239.255.70.83
Which product includes prebuilt templates that are available to be used to customize fabric deployments?
- A . Cisco Tetration
- B . Cisco Data Center Network Manager
- C . Cisco ACI
- D . Cisco UCS Manager
An engineer must affirm the identity of the Cisco UCS Manager after a valid CA-signed keyring for HTTPS access is created.
Which action completes the configuration?
- A . Implement SSLv3.
- B . Create a trusted point.
- C . Set Cipher Suite Mode.
- D . Enable TLSv1.2.
A network engineer must configure a Fibre Channel port monitoring for the local port. The source port should be monitored in the ingress direction.
Which configuration should be implemented to achieve this objective?
- A . interface fc1/15
switchport mode SD
switchport speed 2000
no shutdown span session 1
destination interface fc1/15
source interface fc1/16 rx - B . interface fc1/15
switchport mode switchport switchport speed 2000
no shutdown span session 1
destination interface fc1/15
source interface fc1/16 tx - C . interface fc1/15
switchport mode fex-fabric switchport speed 2000
no shutdown span session 1
destination interface fc1/15
source interface fc1/16 rx - D . interface fc1/15
switchport mode SD
switchport speed 2000
no shutdown span session 1
destination interface fc1/15
source interface fc1/16 tx

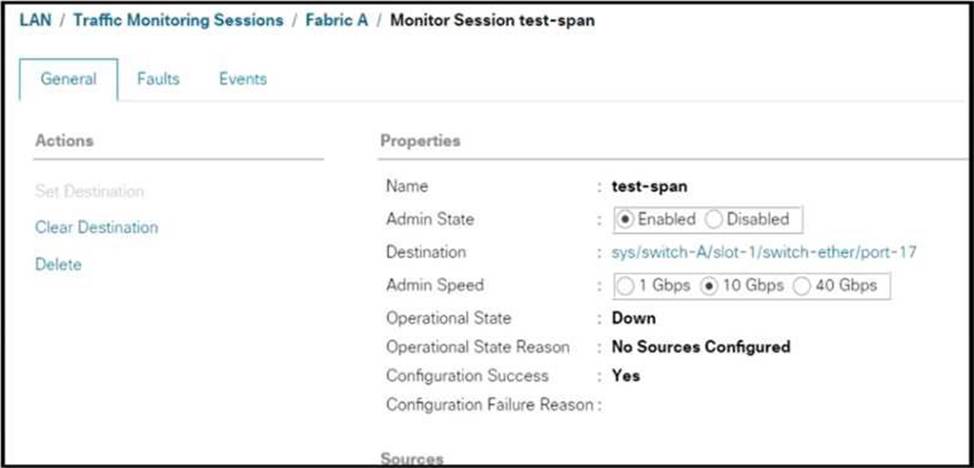

Refer to the exhibit.
An engineer must monitor all LAN traffic on Fabric A from a blade server.
Which source should be configured in the test-span monitor session to complete this task?
- A . all uplink FCoE ports
- B . all vNICs from the service profile that correspond to this server
- C . all uplink Ethernet ports
- D . all vHBAs from the service profile that correspond to this server
DRAG DROP

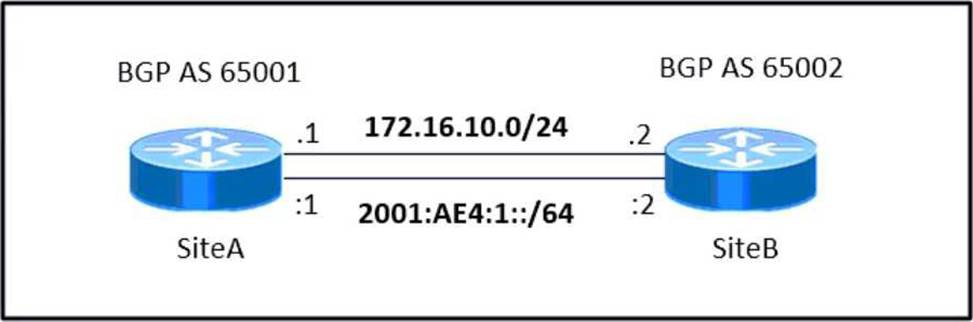

Refer to the exhibit.
An administrator is deploying BGP to geographically connect two data center sites. Both sites are configured for dual-stack routed protocols. The administrator must inject the IPv6 network 2001: AE4:1::/64 into the IPv6 unicast database.
Drag and drop the SiteA commands from the right into the blanks in the configuration on the left. Commands are used more than once.

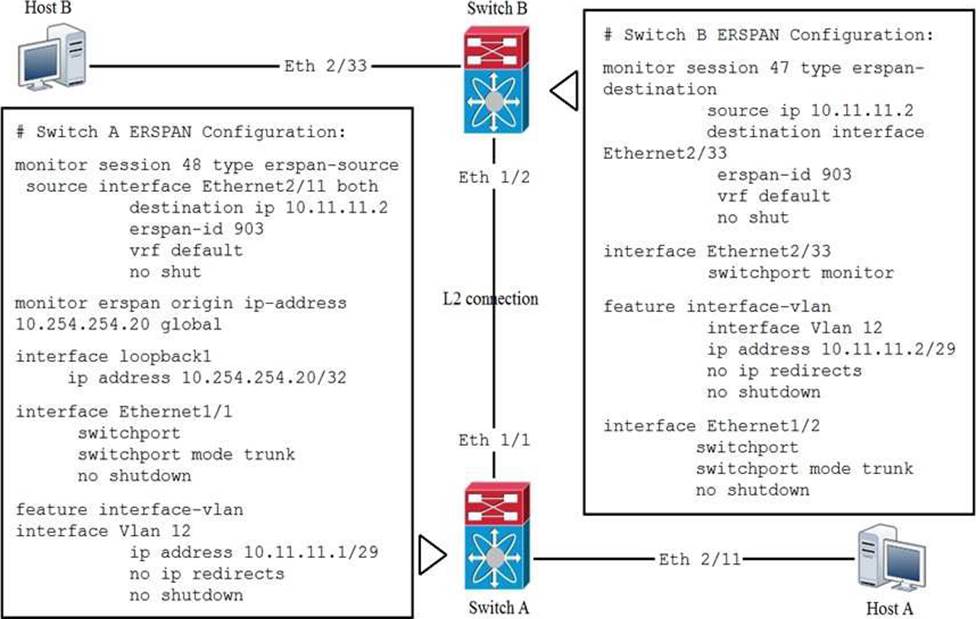

Refer to the exhibit.
Which statement about the ERSPAN configuration in this environment is true?
- A . The session number of the source of ERSPAN spanned traffic must have a session ID of 47 for the traffic analyzer to receive the traffic.
- B . Host B is the source of ERSPAN spanned traffic and host A is the traffic analyzer.
- C . The session number of the source of ERSPAN spanned traffic must have a session ID of 48 for the traffic analyzer to receive the traffic.
- D . Host A is the source of ERSPAN spanned traffic and host B is the traffic analyzer.
