Practice Free 400-007 Exam Online Questions
Company XYZ wants to implement an IPS device to detect and block well-known attacks against their network They want a design solution where all packets that are forwarded to the network are checked against a signature database before being allowed through This check must be done with the minimum effect on performance.
Which design is recommended?
- A . Deploy an IPS behind the firewall in promiscuous mode
- B . Deploy an IPS in front of the firewall in promiscuous mode
- C . Deploy an IPS behind the firewall in in-line mode
- D . Deploy and IPS in front of the firewall in in-line mode
Creating a network that functions as a strategic part of the business rather than simply being a cost center, starts with a good understanding of business requirements and processes.
What specific type of knowledge helps to create high-level LAN WAN. and data center designs that support and enable the business?
- A . risk assessment
- B . monitoring and management of data
- C . understanding of data flows
- D . recovery time of the system s functionality

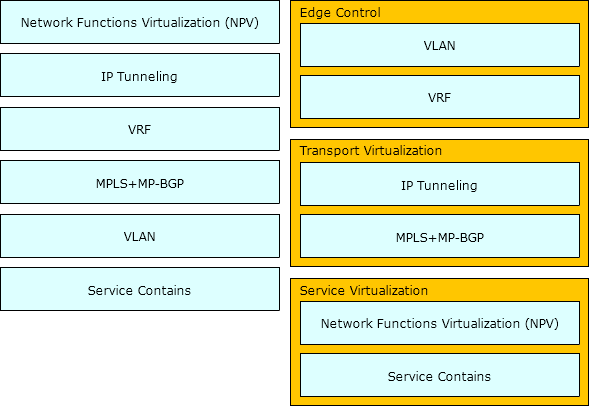

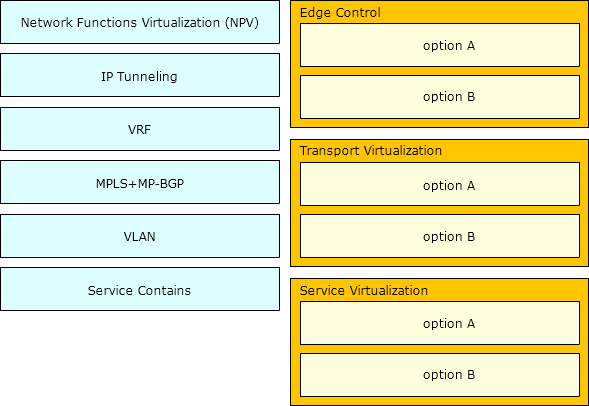

DRAG DROP
Drag and drop the end-to-end network virtualization elements from the left onto the correct network areas on the right.
A business wants to centralize services via VDI technology and to replace remote WAN desktop PCs with thin client-type machines to reduce operating costs.
Which consideration supports the new business requirement?
- A . VDI servers should be contained centrally within a DMZ
- B . The thin client traffic should be placed in a WAN QoS priority queue
- C . VDI servers should be contained within dedicated VLANs in each branch location
- D . The WAN should offer low latency and be resized
Which two statements describe the hierarchical LAN design model? (Choose two)
- A . It is a well-understood architecture that provides scalability
- B . It is the best design for modern data centers
- C . It is the most optimal design but is highly complex
- D . It provides a simplified design
- E . Changes, upgrades, and new services can be introduced in a controlled and stagged manner
Which two control plane policer designs must be considered to achieve high availability? (Choose two.)
- A . Control plane policers are enforced in hardware to protect the software path, but they are hardware platform dependent in terms of classification ability.
- B . Control plane policers are really needed only on externally facing devices.
- C . Control plane policers can cause the network management systems to create false alarms.
- D . Control plane policers must be processed before a forwarding decision is made.
- E . Control plane policers require that adequate protocols overhead are factored in to allow protocol convergence.
Before migrating anything to the cloud, what are three cloud readiness assessment steps that are required to perform? (Choose three.)
- A . Determine the geolocation requirement
- B . Determine the technology obsolescence
- C . Identify the scope and business cases for migration.
- D . Assess infrastructure requirements.
- E . Evaluate available in-house resources
- F . Assess database security requirements
- G . Assess the cloud brokerage solutions

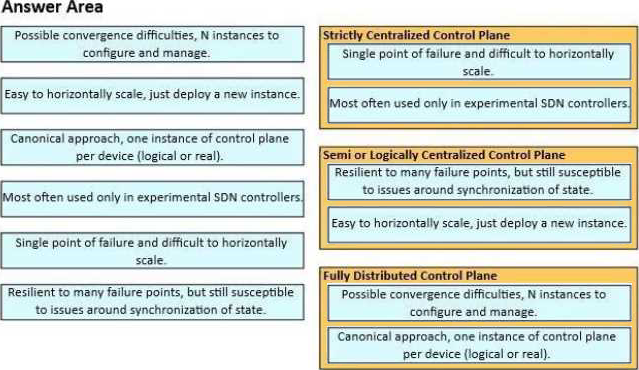

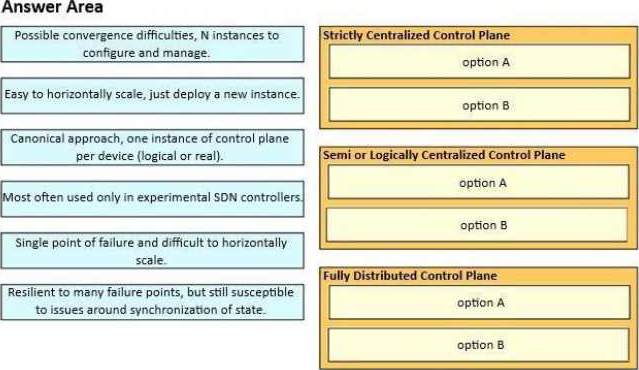

DRAG DROP
Network operators have many options available, from fully centralized to fully distributed control planes, and each approach has its own set of characteristics.
Drag and drop the characteristics from the left onto the corresponding approach on the right.

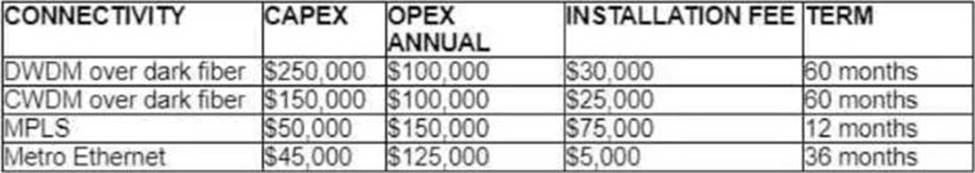

Refer to the table.
A customer investigates connectivity options for a DCI between two production data centers. The solution must provide dual 10G connections between locations with no single points of failure for Day 1 operations. It must also include an option to scale for up to 20 resilient connections in the second year to accommodate isolated SAN over IP and isolated, dedicated replication IP circuits. All connectivity methods are duplex 10 Gbps.
Which transport technology costs the least over two years, in the scenario?
- A . Metro Ethernet
- B . DWDM
- C . CWDM
- D . MPLS
Which two actions ensure voice quality in a branch location with a low-speed, high-latency WAN connection? (Choose two.)
- A . Increase WAN bandwidth
- B . Increase memory branch switch.
- C . Fragment data packets.
- D . Replace any electrical links with optical links
- E . Prioritize voice packets
