Practice Free NSE8_812 Exam Online Questions
Refer to the exhibit, which shows an SD-WAN configuration.
You configured the SD-WAN from Branch1 to the HUB and enabled packet duplication. You later notice that the traffic is not being duplicated.
In this scenario, what is causing this problem?
- A . There is a mismatch in the FortiOS version between Branch1 and HUB.
- B . Traffic cannot be duplicated over multiple zones.
- C . Packet duplication is not enabled on the HUB side.
- D . Packet duplication did not occur because an interface is out of SLA.

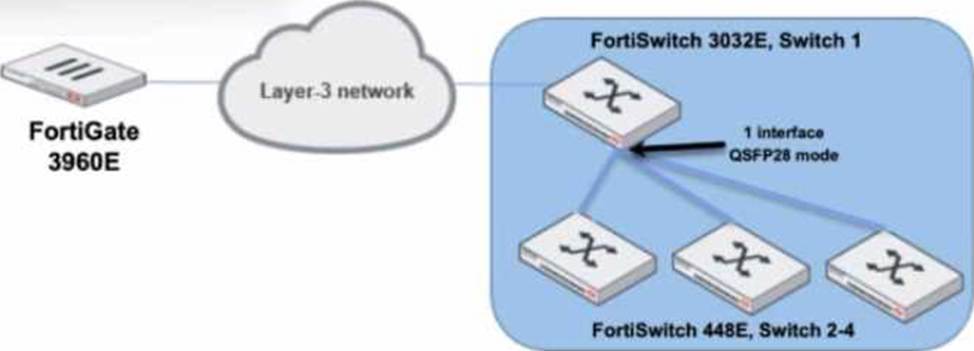

Refer to the exhibit.
You are managing a FortiSwitch 3032E that is managed by FortiLink on a FortiGate 3960E. The 3032E is heavily utilized and there is only one port free.
The requirement is to add an additional three FortiSwitch 448E devices with 10Gbps SFP+
connectivity directly to the 3032E. The plan is to use split port (phy-mode) with QSFP28 mode to connect the new 448E switches.
In this scenario, which statement about the switch deployment is correct?
- A . Additional ports on Switch 1 can be split for a maximum of 128 interfaces.
- B . The port most of Switch 1 must be changed to QSFP.
- C . After enabling split ports and rebooting Switch 1, the new ports can be configured from the FortiGate.
- D . Switches 2-4 will connect successfully with Switch 1 split port in QSFP28 mode.

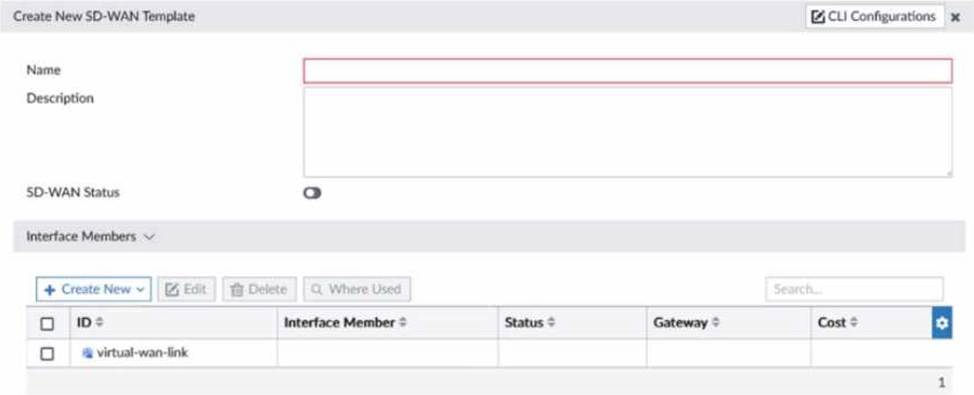

Refer to the exhibit.
You need to create a base SD-WAN configuration that includes SD-WAN rules and Performance SLAs for spoke sites with various connectivity types. It needs to be done in a way that can be easily applied to new sites with a minimum amount of change.
How should you create the SD-WAN zones?
- A . With members and assign overlay interfaces
- B . With members without interface assignments
- C . With no members configured
- D . With members and assign interfaces but do not specify a gateway
