Question #11

What describes Dell EMC PowerStore heat dissipation?

A . Lower model numbered systems have lower heat dissipation specifications than higher model numbered systems
B . X systems have higher heat dissipation specifics than T systems
C . Higher model numbered systems have lower heat dissipation specifications than lower model numbered systems
D . T systems have higher heat dissipation specifics than X systems

Reveal Solution Hide Solution

Question #12

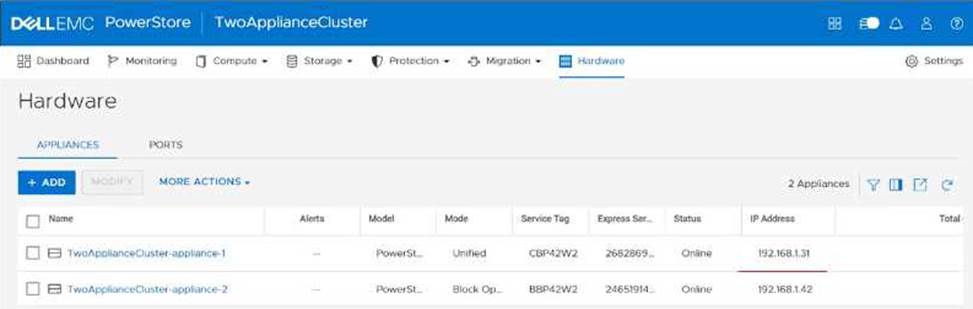

Refer to the exhibit.

Which column indicates the primary appliance?

A . Service Tag
B . Mode
C . Model
D . IP Address

Reveal Solution Hide Solution

Question #13

From where can a data collection be initialized within Dell EMC PowerStore Manager?

A . Appliance, node, and storage resource
B . Cluster, appliance, and event log
C . Cluster, appliance, and alerts
D . Node, storage resource, and alerts

Reveal Solution Hide Solution

Question #14

While on-site troubleshooting a Dell EMC PowerStore system, the node B embedded module fault LED is blinking blue and amber alternating at one second intervals.

What does this indicate?

A . Node is in service mode
B . System is not initialized
C . Node is booting
D . Node is in degraded mode

Reveal Solution Hide Solution

Question #15

What is a step in configuring the ToR data switches for a Dell EMC PowerStore T?

A . Configure a port for the discovery laptop
B . Create VLAN for vMotion networks
C . Configure ports for management on native VLAN
D . Create VLANs for NAS server networks

Reveal Solution Hide Solution

Question #16

A Storage Administrator needs to address specific fixes within their Dell EMC PowerStore system.

Which NDU software upgrade option is used for this situation?

A . Drive firmware
B . Hotfixes
C . Software releases
D . vCenter

Reveal Solution Hide Solution

Question #17

Which LED combination shows a connected and working node?

A . power LED: blinking green fault LED: blue
B . power LED: blinking green fault LED: off
C . power LED: steady green fault LED: off
D . power LED: steady green fault LED: amber

Reveal Solution Hide Solution

Question #18

How many fan module failures can a node tolerate?

A . 1
B . 3
C . 0
D . 2

Reveal Solution Hide Solution

Question #19

DRAG DROP

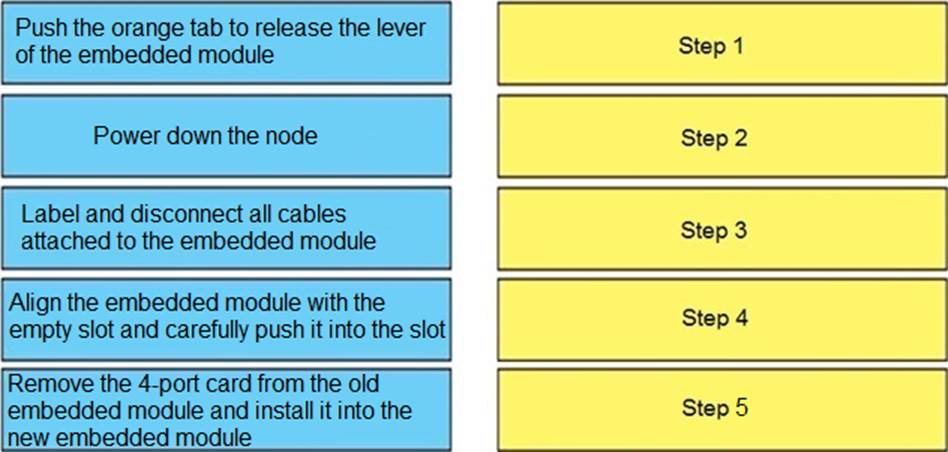

Correctly order the steps of the embedded module replacement procedure.

未标题-1

Reveal Solution Hide Solution

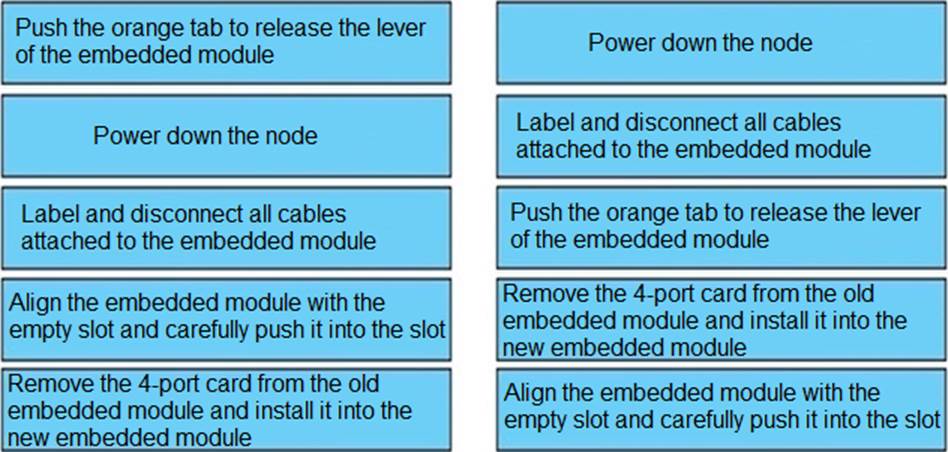

Correct Answer:

Explanation:

The correct order of steps for the embedded module replacement procedure is:

Power down the node

Push the orange tab to release the lever of the embedded module Label and disconnect all cables attached to the embedded module

Remove the 4-port card from the old embedded module and install it into the new embedded module

Align the embedded module with the empty slot and carefully push it into the slot

The procedure for replacing an embedded module in a Dell PowerStore system is a critical task that should be performed with care. Here is a detailed explanation of each step:

Power down the node: Ensure that the node is properly powered down to avoid any electrical hazards or data corruption. This step is crucial for the safety of both the technician and the system1. Push the orange tab to release the lever of the embedded module: Locate the orange tab on the embedded module and push it to release the lever. This action will unlock the module from its slot1. Label and disconnect all cables attached to the embedded module: Before removing the embedded module, label all cables for easy reconnection later. Then, carefully disconnect each cable to free the module1.

Remove the 4-port card from the old embedded module and install it into the new embedded module: Transfer the 4-port card from the old module to the new one. Handle the card with care to avoid damage to the electronic components1.

Align the embedded module with the empty slot and carefully push it into the slot: Carefully align the new embedded module with the guides in the empty slot and gently push it into place until it is securely seated1.

After completing these steps, reconnect the cables as per the labels, and power up the node to verify the operation of the new embedded module. For detailed instructions and safety information, refer to the Dell PowerStore Installation and Service Guide2. It is important to follow these guidelines closely to ensure the replacement is performed correctly and the system operates smoothly after the procedure.
