Practice Free D-PE-OE-23 Exam Online Questions
What are the diagnostic indicators on the left control panel of a Dell PowerEdge 16G server?
- A . Electrical indicator, Temperature indicator, Memory indicator, and PSU indicator
- B . Drive indicator, Electrical indicator, Temperature indicator, and Memory indicator
- C . Drive indicator, Memory indicator, iDRAC direct indicator, and PCIe indicator
- D . Quick Sync 2 indicator, System ID indicator, PSU Indicator, and iDRAC direct indicator
A customer is attempting to install Windows Server 2022 on a Dell PowerEdge R740. However, Windows Server 2022 is not listed in the Available Operating Systems list in the Lifecycle Controller > OS Deployment Wizard.
How can the customer add Windows Server 2022 to the list?
- A . Update OS driver pack
- B . Change installation source
- C . Change boot mode to UEFI
- D . Update BIOS
Where is the LCD panel located on a Dell PowerEdge 16G server?
- A . An add-on Server Bezel
- B . Rear of the server
- C . Left control panel
- D . Right control panel
A technician has just upgraded memory modules in a server. When the technician loads the iDRAC, the new memory is NOT listed. The OS reports all memory.
Where should the technician troubleshoot this issue?
- A . Boot to F2, select iDRAC Settings > Lifecycle Controller. If enabled, disable “Collect System Inventory on Restart”. Restart the system, then return to the menu and enable it again.
- B . Boot to F2, select System BIOS > Memory Settings, and enable System Memory Testing
- C . Boot to F2, select System BIOS > Integrated Devices. If enabled, disable “Collect System Inventory on Restart”. Restart the system, then return to the menu and enable it again.
- D . Boot to F2, select iDRAC Settings > Memory Settings, and make sure Memory Operation Mode is Mirrored.
A server has 12x 32 GB RDIMMS installed with two CPUs. A technician has been called because the OS is seeing only 192 GB of memory instead of the full 384 GB. The server appears to be operating correctly and is displaying no errors on the LCD plus has no error entries in the logs relating to memory.
What should the technician do to resolve this issue?
- A . Switch the Memory Mode to Optimized
- B . Update the memory controller firmware
- C . Switch the Memory Mode to Memory Mirroring
- D . Replace CPU2
A server has 12x 32 GB RDIMMS installed with two CPUs. A technician has been called because the OS is seeing only 192 GB of memory instead of the full 384 GB. The server appears to be operating correctly and is displaying no errors on the LCD plus has no error entries in the logs relating to memory.
What should the technician do to resolve this issue?
- A . Switch the Memory Mode to Optimized
- B . Update the memory controller firmware
- C . Switch the Memory Mode to Memory Mirroring
- D . Replace CPU2
What is a systems management console solution optimized for monitoring and managing Dell enterprise and remote office hardware?
- A . SupportAssist Enterprise
- B . iSM
- C . OpenManage Essentials
- D . iDRAC9

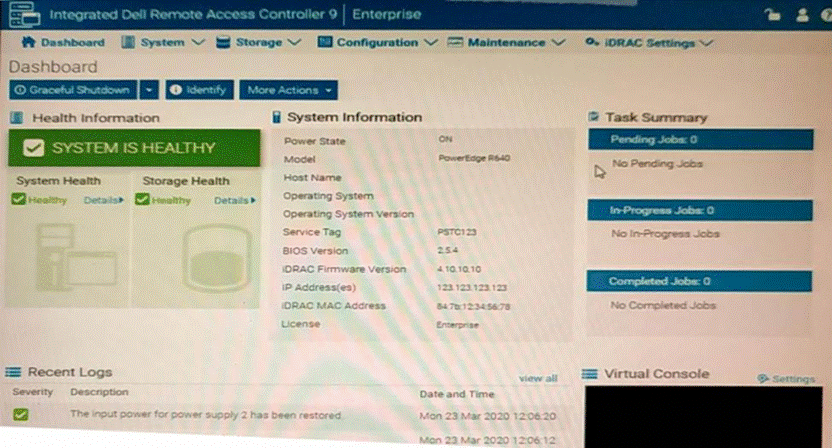

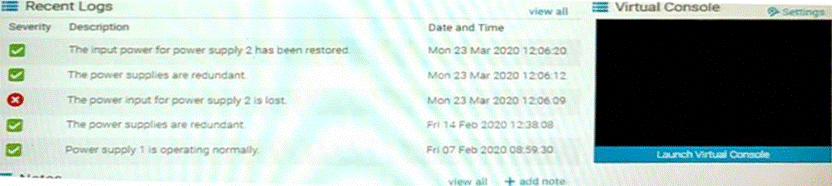

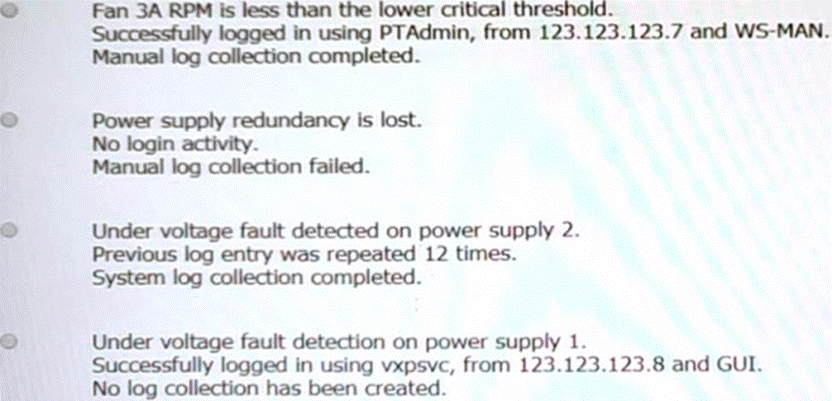

What happened on April 30, 2019? Note: It is necessary to dose (x) the simulator window before you can select a response to this question.
- A . Option A
- B . Option B
- C . Option C
- D . Option D
A technician is ready to deploy a Dell EMC PowerEdge server. If a critical part on the system board fails, they must be able to replace the system board, reconfigure components, and update the firmware revisions in the shortest possible time.
How should the technician meet this requirement?
- A . Use the iDRAC Rollback feature to restore the firmware revisions
- B . Back up component configurations using iSM
- C . Back up the profile using the System Profile Settings feature
- D . Use the iDRAC GUI to back up the Server Profile
A technician in Portland, Oregon has been asked to update the firmware on a server in Omaha, Nebraska. They will use an NFS server also located in Nebraska for serving patches that have been vetted by their security teams.
What two pieces of information does the technician need in order to access the NFS patch server from the Lifecycle Controller or iDRAC? (Choose two.)
- A . Username and password
- B . CHAP authentication credentials
- C . IP address or hostname
- D . Share name
