Question #71

Task 5

You need to ensure that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net.

Reveal Solution Hide Solution

Question #72

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit.

Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You download and reinstall the VPN client configuration.

Does this meet the goal?

A . Yes
B . No

Reveal Solution Hide Solution

Question #73

SIMULATION

Task 4

You need to ensure that the owner of VNET3 receives an alert if an administrative operation is performed on the virtual network.

Reveal Solution Hide Solution

Correct Answer: See the

Explanation below

for step by step

instructions.

Explanation:

To ensure that the owner of VNET3 receives an alert whenever an administrative operation is

performed on the virtual network, you can set up an Activity Log Alert in Azure Monitor. Here’s how

you can do it:

Step-by-Step Solution

Step 1: Create an Activity Log Alert

Navigate to the Azure Portal.

Search for “Monitor” and select it.

In the Monitor blade, select “Alerts” from the left-hand menu.

Click on “New alert rule”.

Step 2: Configure the Alert Rule

Select the Scope:

Click on “Select resource”.

Choose “Virtual Network” as the resource type.

Select VNET3 from the list of virtual networks.

Define the Condition:

Click on “Add condition”.

In the “Signal type” dropdown, select “Activity Log”.

Choose “Administrative” as the category.

Select the specific operations you want to monitor

(e.g., Microsoft.Network/virtualNetworks/write for any write operations on the virtual network).

Set the Alert Details:

Enter a name for the alert rule (e.g., VNET3 Admin Operations Alert).

Provide a description if needed.

Configure the Action Group:

Click on “Add action group”.

Enter a name for the action group.

Select the action type (e.g., Email/SMS/Push/Voice).

Enter the details of the recipient (e.g., the email address of the owner of VNET3).

Review and Create:

Review the alert rule settings.

Click on “Create alert rule”.

Explanation

Activity Log Alerts: These alerts notify you when specific operations are performed on your Azure

resources. By setting up an alert for administrative operations, you ensure that any changes to VNET3 are promptly reported.

Action Groups: These define the actions to take when an alert is triggered. You can configure notifications via email, SMS, or other methods to ensure the owner of VNET3 is informed immediately.

Administrative Operations: Monitoring these operations helps in tracking changes and maintaining the security and integrity of your virtual network.

By following these steps, you can ensure that the owner of VNET3 receives timely alerts for any administrative operations performed on the virtual network, helping to maintain oversight and security.

Question #74

Your company has offices in Montreal. Seattle, and Paris. The outbound traffic from each office originates from a specific public IP address.

You create an Azure Front Door instance named FD1 that has Azure Web Application Firewall (WAF) enabled. You configure a WAF policy named Policy! that has a rule named Rule1. Rule1 applies a rate limit of 100 requests for traffic that originates from the office in Montreal.

You need to apply a rate limit of 100 requests for traffic that originates from each office.

What should you do?

A . Modify the conditions of Rule1.
B . Create two additional associations.
C . Modify the rule type of Rule1.
D . Modify the rate limit threshold of Rule1.

Reveal Solution Hide Solution

Question #75

You need to configure GW1 to meet the network security requirements for the P2S VPN users.

Which Tunnel type should you select in the Point-to-site configuration settings of GW1?

A . IKEv2 and OpenVPN (SSL)
B . IKEv2
C . IKEv2 and SSTP (SSL)
D . OpenVPN (SSL)
E . SSTP (SSL)

Reveal Solution Hide Solution

Question #76

HOTSPOT

Your on-premises network contains the subnets shown in the following table.

The network contains a firewall named FW1 that uses a public IP address of 131.107.100.200.

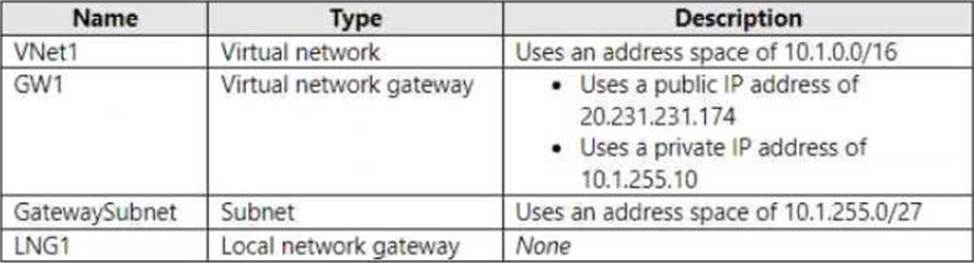

You have an Azure subscription that contains the resources shown in the following table.

You plan to configure a Site-to-Site (S2S) VPN named VPN1 that will connect GW1 to FW1.

You need to configure LNG1 to support VPN1.

The solution must meet the following requirements:

• Ensure that the resources on Subnet1 and Subnet2 can communicate with the resources on VNe1l.

• Minimize administrative effort.

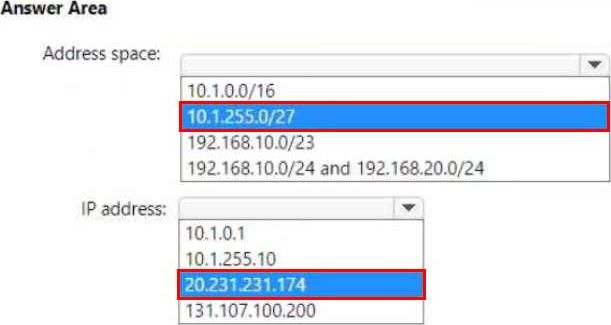

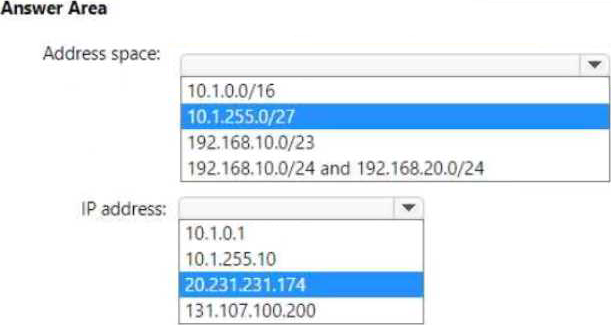

How should you configure LNG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Question #77

DRAG DROP

You have an Azure virtual network named Vnet1 that connects to an on-premises network.

You have an Azure Storage account named storageaccount1 that contains blob storage.

You need to configure a private endpoint for the blob storage.

The solution must meet the following requirements:

✑ Ensure that all on-premises users can access storageaccount1 through the private endpoint.

✑ Prevent access to storageaccount1 from being interrupted.

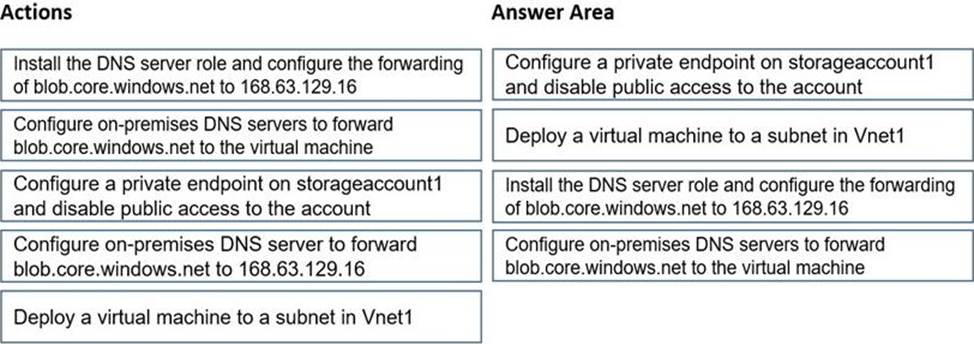

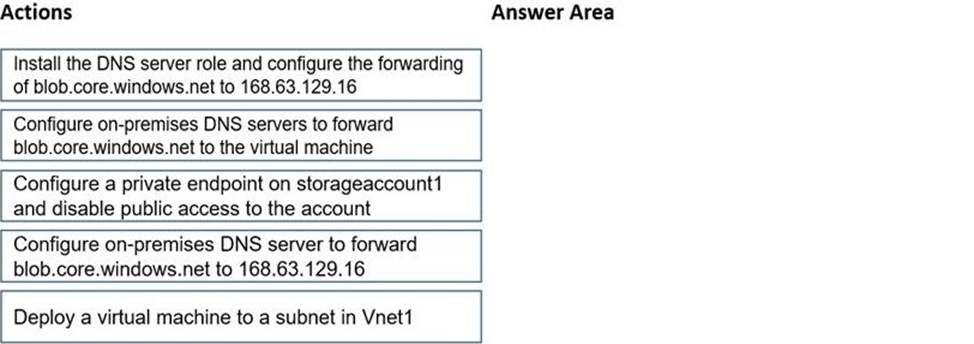

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Reveal Solution Hide Solution

Question #78

HOTSPOT

You have an on-premises network.

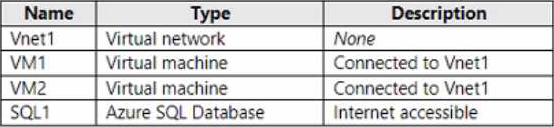

You have an Azure subscription that contains the resources shown in the following table.

You need to implement an ExpressRoute circuit to access the resources in the subscription. The solution must ensure that the on-premises network connects to the Azure resources by using the ExpressRoute circuit.

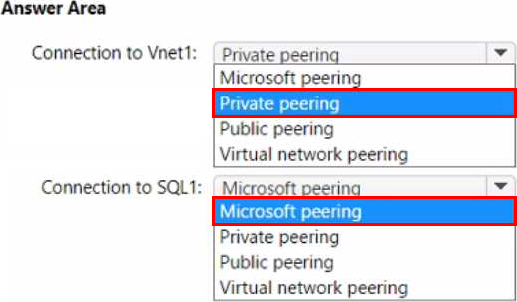

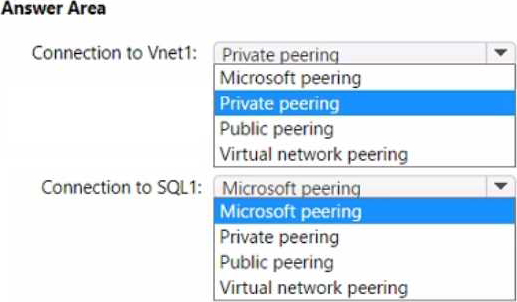

Which type of peering should you use for each connection? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Reveal Solution Hide Solution

Question #79

HOTSPOT

You have two Azure subscriptions named Subscription1 and Subscription2.

There are no connections between the virtual networks in two subscriptions.

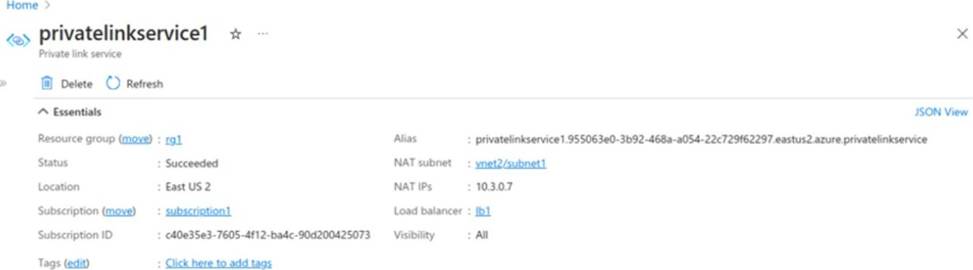

You configure a private link service as shown in the privatelinkservice1 exhibit. (Click the privatelinkservice1 tab.)

You create a load balancer name in Subscription1 and configure the backend pool shown in the lb1 exhibit. (Click tie 1b1 tab.)

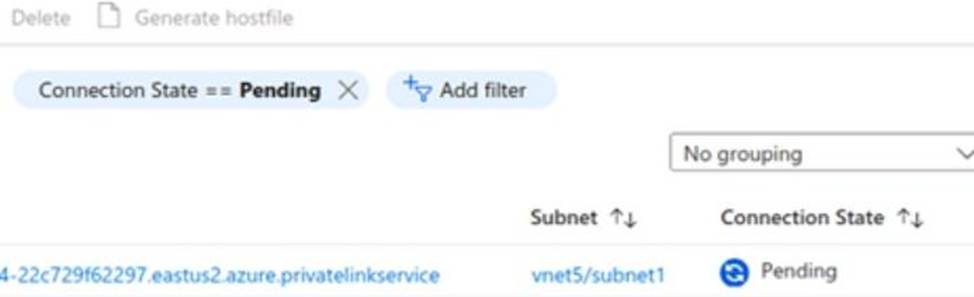

You create a private endpoint in Subscription2 as shown in the privateendpoint4 exhibit. (Click the privateendpoint4)

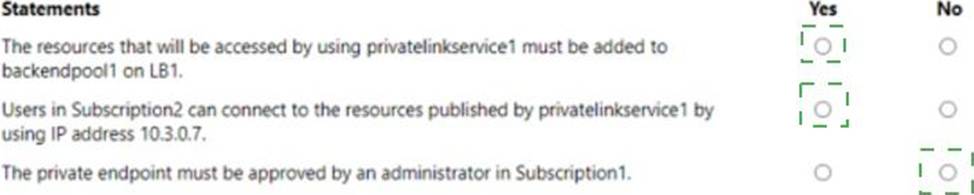

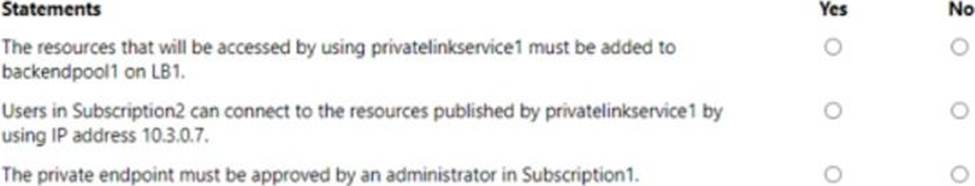

For each of the following statements, select YES if the statement is true. Otherwise. select No.

Reveal Solution Hide Solution

Question #80

You have an Azure subscription.

You plan to deploy Azure Firewall Premium, enable all the Premium features, and configure both network and application rules.

Which type of rule will the firewall process first?

A . infrastructure
B . network
C . threat intelligence
D . application

Reveal Solution Hide Solution
