Practice Free 350-801 Exam Online Questions
Calls are being delivered to the end user in the globalized format.
Where does an engineer configure the calling number into a localized format?
- A . route pattern
- B . service parameters
- C . IP phone
- D . gateway
What is the major difference between the two possible Cisco IM and Presence high-availability modes?
- A . Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standby node in the event of an outage, and it also provides load balancing.
- B . Balanced mode provides user load balancing and user failover only for manually generated failovers. Active/standby mode provides an unconfigured standby node in the event of an outage, but it does not provide load balancing.
- C . Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standby node in the event of an outage, but it does not provide load balancing.
- D . Balanced mode does not provide user load balancing, but it provides in the event of an outage. Active/standby mode provides an always on standby node in the event of an outage, but it does not provide load balancing.
What field is configured to change the caller ID information on a SIP route pattern?
- A . Route Partition
- B . Called Party Transformation Mask
- C . Calling Party Transformation Mask
- D . Connected Line ID Presentation
An engineer must configure a new route pattern. When a user dials 9-555-555-5555, only the last 10 digits must be sent to the gateway. All transformations must be done at the route pattern level.
Which route pattern must the engineer use?
- A . Route pattern: 9.@
Called party transformation discard digits: PreDot - B . Route pattern: 9.(2-9].. [2-9]……
Called party transformation discard digits: Nine - C . Route pattern: 9.(5-5] [5-5]…
Called party transformation discard digits: PreDot - D . Route pattern: 9T
Called party transformation discard digits: Nine
Which two protocols are proxied over an Expressway-E/C pair when a MRA login including phone services is performed? (Choose two.)
- A . SCCP
- B . HTTPS
- C . H.323
- D . SRTP
- E . SIP
Which Webex Calling construct is used to organize calling features within physical site?
- A . client settings
- B . service settings
- C . locations
- D . call routing
Users dial a 9 before a 10-digit phone number to make an off-net call. All 11 digits are sent to the Cisco Unified Border Element before going out to the PSTN. The PSTN provider accepts only 10 digits.
Which configuration is needed on the Cisco Unified Border Element for calls to be successful?
- A . voice translation-rule 1 rule 1 /^9/ //
- B . voice translation-rule 1 rule 1 /^9(……….)/ //
- C . voice translation-rule 1 rule 1 /^9.+/ //
- D . voice translation-rule 1 rule 1 /^9………/ //
An engineer is configuring Cisco Jabber for Windows and must implement desk phone control mode for some of the users.
Which access control group must be configured for those users to enable this functionality?
- A . Allow Control of Device from CTI
- B . Standard CTI Allow Reception of SRTP Key Material
- C . Standard CTI Secure Connection
- D . Standard CTI Enabled
An administrator is in the process of moving Cisco Unity Connection mailboxes between mailbox stores. The administrator notices that some mailboxes have active Message Waiting indicators.
What happens to these mailboxes when they are moved?
- A . The MWI status is retained after a mailbox is moved from one store to another
- B . The move will fail if MWI status is active
- C . If the source and target mailbox store are not disabled, MWI status is not retained
- D . Moving the mailboxes from one store to another fails if MWI is turned on

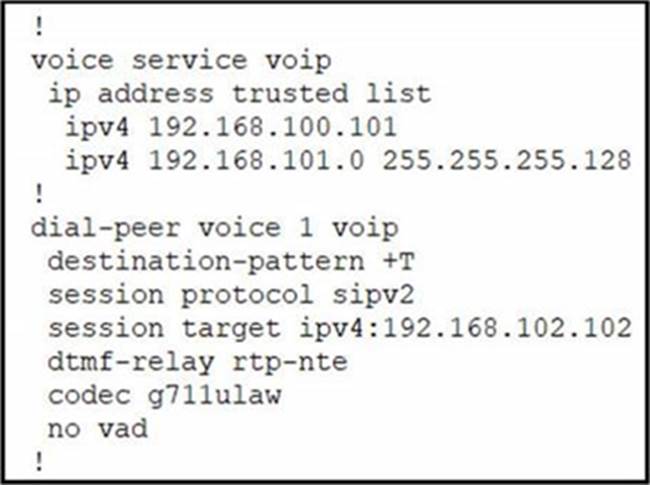

Refer to the exhibit.
An engineer must implement toll fraud prevention on a Cisco UCM cluster. Only the SIP protocol must be allowed for connections passing through Cisco Unified Border Element.
What must be configured?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
