Practice Free 350-801 Exam Online Questions
Multiple route patterns match a number.
How does Cisco Unified Communications Managers determine which pattern to use?
- A . the one that comes first in numerical order
- B . the one with the longest match
- C . the one with the closest match
- D . the one that discards everything PreDot
Why would we not include an end user’s PC device in a QoS trust boundary?
- A . The end user could incorrectly tag their traffic to bypass firewalls.
- B . The end user may incorrectly tag their traffic to be prioritized over other network traffic.
- C . There is no reason not to include an end user’s PC device in a QoS trust boundary.
- D . The end user could incorrectly tag their traffic to advertise their PC as a default gateway.
A collaboration engineer inherits the responsibilities of another engineer. The previous engineer implemented a SIP integration between Cisco Unity Connection and Cisco UCM. Users can leave messages, but the Message Waiting Indicator is unconfigured.
Which two actions must the engineer perform to enable MWI? (Choose two.)
- A . From Cisco UCM, select Advanced Features, select Voice Mail, select Message Waiting, and configure the message waiting numbers.
- B . From Cisco UCM. open the SIP Trunk Security Profile Information menu and select Accept Unsolicited Notification.
- C . From Message Waiting Indicator Settings in Unity Connection, enable MWI for each user.
- D . From Port Group in Unity Connection, select Enable Message Waiting Indicators.
- E . From Message Waiting Indicators in Unity Connection, select Send Message Counts
Which method is used to avoid toll fraud with Cisco Unified Communications Manager calls?
- A . call policy service
- B . TOLLFRAUD_APP
- C . default zone access rules
- D . class of service

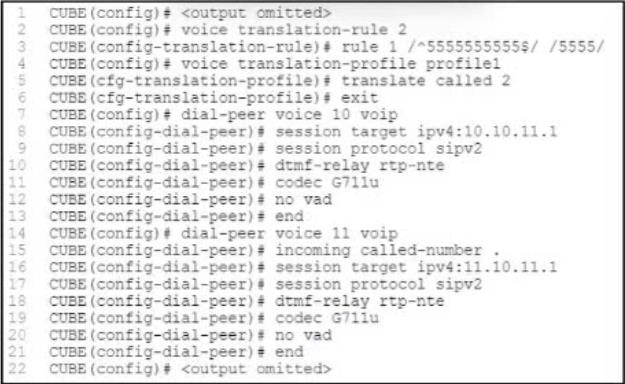

Refer to the exhibit.
An engineer must deploy a Cisco Unified Border Element that will allow the last four digits of a dialed number to be sent from the Cisco Unified Border Element to Cisco UCM. The configuration in the exhibit already exists on die Cisco Unified Border Element.
Which additional configuration must be performed on the Cisco Unified Border Element?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
In a Dual Video Queue approach, what is the purpose of the CS4 class for Cisco video devices?
- A . Desktop video traffic needs strict priority queuing marked with CS4 class
- B . Create a simpler provisioning with one CBWFQ for desktop and immersive video traffic
- C . Enforce a strict priority queueing for both desktop and immersive video traffic
- D . Immersive video traffic is marked with CS4 and placed in a CBWFQ separate from desktop video
Which two technical reasons make QoS a necessity in a video deployment? (Choose two.)
- A . bursty behavior of video traffic
- B . variable bit rate of the video stream
- C . provisioned bandwidth of the link
- D . low response time between endpoints
Where is Native Call Queuing configured in Cisco UCM?
- A . hunt list
- B . hunt pilot
- C . Advanced Features menu
- D . line group
An engineer is designing a load balancing solution for two Cisco Unified Border Element routers. The first router (cube1.ab.com) takes 60% of the calls and the second router (cube2.abc.com) takes 40% of the calls. Assume all DNS A records have been created.
Which two SRV records are needed for a load balanced solution? (Choose two.)
- A . _sip._udp.abc.com 60 IN SRV 2 60 5060 cube1.abc.com
- B . _sip._udp.abc.com 60 IN SRV 60 1 5060 cube1.abc.com
- C . _sip._udp.abc.com 60 IN SRV 1 40 5060 cube2.abc.com
- D . _sip._udp.abc.com 60 IN SRV 3 60 5060 cube2.abc.com
- E . _sip._udp.abc.com 60 IN SRV 1 60 5060 cube1.abc.com
What is a benefit of Easy/QoS?
- A . It configures QoS on the network.
- B . It provisons QoS for Layer 3 devices automatically.
- C . It expresses business relevance for applications.
- D . It allows single command QoS deployment.
