Practice Free 350-801 Exam Online Questions
What is a function of a System Call Handler in Cisco Unity Connections?
- A . Greet callers with recorded prompts.
- B . Filter incoming calls to prevent robocalls.
- C . Identify high-priority calls.
- D . Place calls in a queue.
End users report bad video quality and voice choppiness on Cisco Collaboration endpoints. The engineer changed the device pool the users were in but did not correct the problem.
Which action should be taken to troubleshoot this issue?
- A . Restart the Cisco Location Bandwidth Manager service on the Cisco UCM publisher
- B . Check for duplex/speed mismatches between the network port settings of the system and network switch
- C . Use direct IP address calls between two endpoints to troubleshoot call quality issues
- D . Set the service parameter Use Video Bandwidth Pool for Immersive Video Calls to ג false ג
Which action must an administrator take to provide a method that plays prerecorded messages when setting up a voicemail server in a Cisco collaboration on-premises system?
- A . Create a recording that is applied to a service voicemailbox in Cisco UCM.
- B . Configure a directory handler to respond to the calls in Cisco UCM.
- C . Create a call handler template to apply to a call handler in Cisco Unity Connection.
- D . Configure a telephony service in Cisco Unity Connection to play prerecorded messages applying this service to a number.

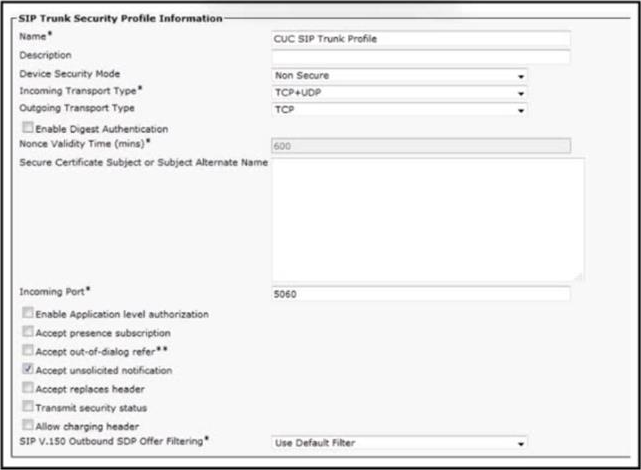

Refer to the exhibit.
An engineer is integrating Cisco UCM with Cisco Unity Connection via SIP.
Which two boxes should be checked to complete the configuration of the SIP trunk security profile? (Choose two.)
- A . to enable application-level authorization
- B . to enable digest authentication
- C . to accept out-of-dialog refer
- D . to accept presence subscription
- E . to accept replaces header

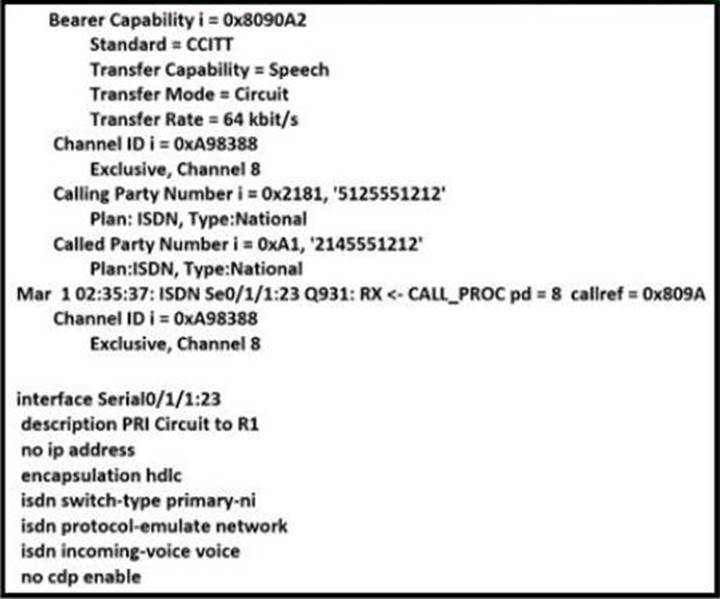

Refer to the exhibit.
An administrator must replace the T1 card with an E1 card.
What is the correct configuration if the administrator was asked to configure 12 time slots?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D

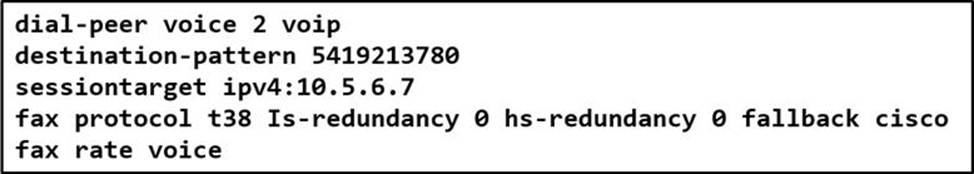

An engineer builds this configuration on a Cisco IOS gateway for fax dial-peers:
Which command is required to complete the configuration?
- A . codec g723ar63
- B . codec g726r32
- C . codec g729br81
- D . codec g711ulaw
An administrator must manipulate a number when a specific criterion is met. If this happens, the administrator wants to route the call again based on the new information to send the call to the correct destination.
How must the administrator archive this function in the Cisco UCM?
- A . Use a translation pattern with a CSS inside.
- B . Set up a route pattern to manipulate numbers without sending the call directly to a gateway.
- C . Set up a calling search space together with the route pattern to manipulate the call before the gateway.
- D . Use a route pattern with a partition inside.
A Cisco IP Phone 7841 that is registered to a Cisco UCM with default configuration receives a call setup message.
Which codec is negotiated when the SDP offer includes this line of text?
m=audio 49181 RTP/AVP 0 8 97
- A . G.711alaw
- B . iLBC
- C . G.722
- D . G.711ulaw
Where is urgent priority enabled to bypass the T302 timer?
- A . transformation pattern
- B . directory number
- C . route partition
- D . CTI port
What is the purpose of configuring locations in a Cisco Webex dial plan?
- A . to identify the location of Webex data centers
- B . to restrict access to international calling capabilities
- C . to restrict access to long distance calling capabilities
- D . to organize calling features within the same physical location
