Practice Free 350-801 Exam Online Questions
Which command is used in Cisco IOS XE TDM gateway to configure the voice T1/E1 controller to provide clocking?
- A . clock source line
- B . clock source external
- C . clock source internal
- D . clock source network
An engineer must configure a route pattern that can route all +E.164 globalized international numbers for the dial plans of all countries.
Which Cisco UCM configuration accomplishes this task?

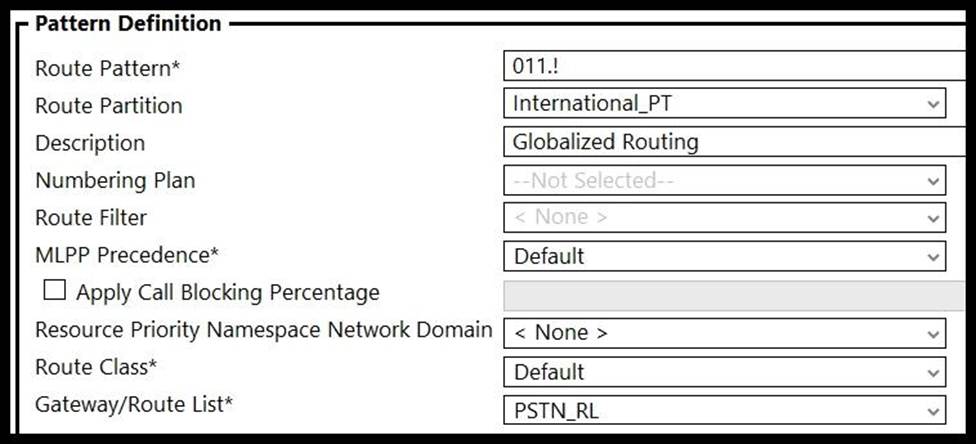

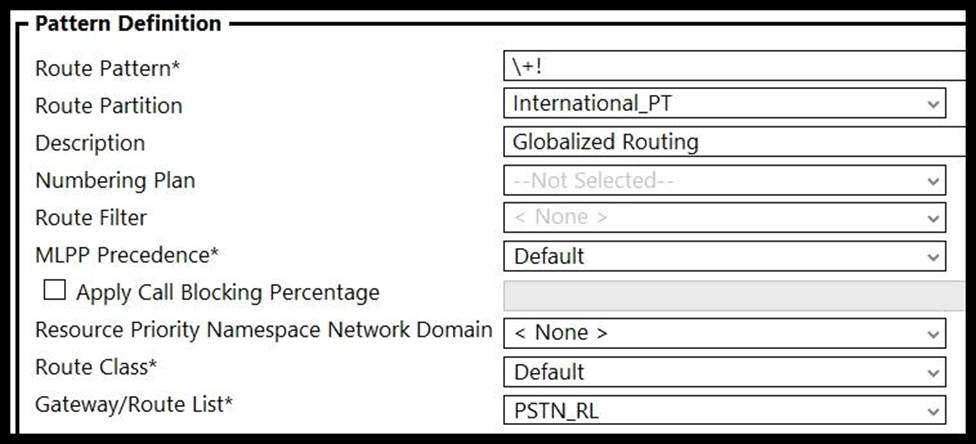

A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
What are two characteristics of numbers in Webex Calling? (Choose two)
- A . A number marked as Main is not eligible to be moved of deleted
- B . A number can only belong to one location
- C . A number must be marked Active to be eligible for deletion.
- D . A number can belong to multiple locations.
- E . A number cannot be moved while marked Active.
Which value should be changed when each Cisco UCM node does not allow for more than 5000 phones to be registered?
- A . Maximum Number of Registered Devices service parameter on each node
- B . Maximum Number of Registered and Unregistered Devices service parameter on each node
- C . Minimum Number of Phones service parameter on each node
- D . Maximum Number of Phones service parameter on the Publisher

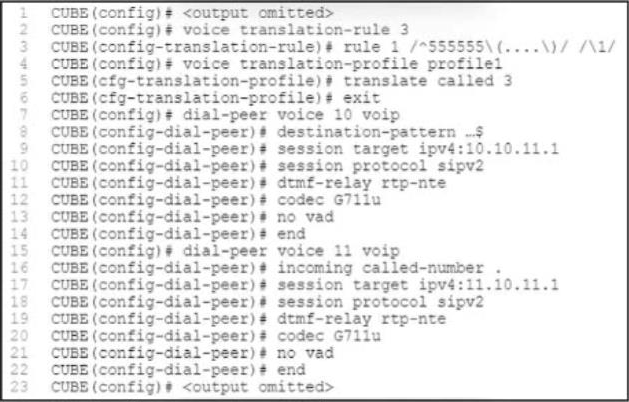

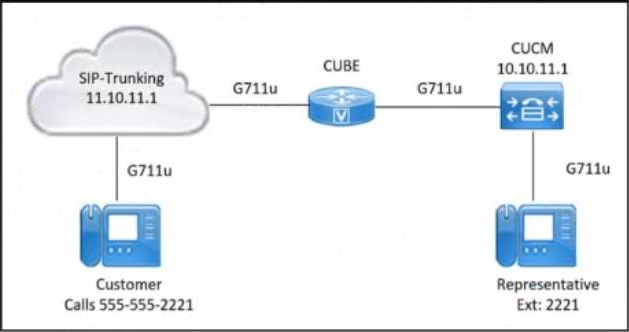

Refer to the exhibit.
An engineer deploys this Cisco Unified Border Element configuration, but the phone at extension 2221 fails to ring.
These configurations were performed already in Cisco UCM:
• phone configuration and registration
• SIP trunk configuration
• translation pattern configuration
Which action resolves the issue?
- A . Apply voice translation-rule 3 to dial-peer 11 voip.
- B . Change the destination pattern for dial-peer voice 10 to 2… $.
- C . Apply voice translation-rule 3 to dial-peer 10 voip.
- D . Replace voice translation-rule 3 with voice translation-rule 1.
Due to provider requirements, outgoing calls from the Enterprise to the PSTN must start with channel 1.
Which ISDN command changes the channel selection on IOS to meet this requirement?
- A . isdn bchan-number-order descending
- B . isdn bchan-number-order ascending
- C . isdn protocol-emulate network
- D . isdn incoming-voice voice
An engineer must configure a Cisco ISR 4000 as an MGCP gateway to download its MGCP-specific configuration from Cisco UCM.
Which Cisco IOS configuration snippet accomplishes this task?
- A . ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1
ISR4K(config)# mgcp call-agent 10.1.2.3 2428 service-type mgcp version 0.1
ISR4K(config)# ccm-manager config server 10.1.2.3
ISR4K(config)# ccm-manager config
ISR4K(config)# ccm-manager mgcp
ISR4K(config)# mgcp - B . ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1
ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 0.1
ISR4K(config)# ccm-manager config server 10.1.2.3
ISR4K(config)# ccm-manager config download
ISR4K(config)# ccm-manager mgcp
ISR4K(config)# mgcp - C . ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1
ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 11.5.1
ISR4K(config)# ccm-manager config server 10.1.2.3
ISR4K(config)# ccm-manager config
ISR4K(config)# ccm-manager mgcp
ISR4K(config)# mgcp - D . ISR4K(config)# ip tftp source-interface GigabitEthernet 0/0/1
ISR4K(config)# mgcp call-agent 10.1.2.3 2427 service-type mgcp version 0.1
ISR4K(config)# ccm-manager config server 10.1.2.3
ISR4K(config)# ccm-manager config
ISR4K(config)# ccm-manager mgcp
ISR4K(config)# mgcp
Which external DNS SRV record must be present for Mobile and Remote Access?
- A . _cisco-uds._tcp.example.com
- B . _collab-edge._tls.example.com
- C . _collab-edge._tcp.example.com
- D . _cisco-uds._tls.example.com
An engineer must configure switch port 2/8 to send CDP packets to configure an attached Cisco IP phone to trust tagged traffic on its access port.
Which command is required to complete the configuration?
Router# configure terminal –
Router(config)# interface gigabitethernet 2/8
Router(config-if)# description Cube E43.308-6491
- A . platform qos trust extend cos 3
- B . platform qos extend trust
- C . platform qos trust extend
- D . platform qos trust extend cos 5
An administrator is asked to implement toll fraud prevention in Cisco UCM, specifically to restrict off-net to off-net call transfers.
How is this implemented?
- A . Use the correct route filters.
- B . Implement time-of-day routing.
- C . Enforce ad-hoc conference restrictions.
- D . Set the appropriate service parameter.
