Practice Free 300-815 Exam Online Questions
Which elements does Cisco cloud mobility for collaboration include?
- A . Cisco Webex Collaboration Cloud Services
- B . Cisco Collaboration Cloud
- C . Cisco Collaboration Cloud and Cisco Webex Collaboration Cloud Services
- D . Cisco Collaboration Cloud and Cisco Mobile and Remote Access Collaboration Cloud Services
An administrator is configuring a SIP trunk to an ITSP. The SIP connection will traverse from a Cisco UCM to the ISTP through a Cisco Unified Border Element. The ITSP has indicated that they require an in-band method for DTMF.
Which command on the outbound dial-peer to the ITSP will meet this requirement?
- A . router (config-dial-peer) dtmf-relay sip-notify
- B . router (config-dial-peer) dtmf-relay sip-kpml
- C . router (config-dial-peer) dtmf-relay h245-alphanumeric
- D . router (config-dial-peer) dtmf-relay rtp-nte
What are two configureation features of the Client matter code setting in the route pattern configuration? (Choose two.)
- A . The client Matter Code feature supports overlap sending since the Cisco UCM can determine when to prompt the user for the code.
- B . Selecting the Allow Overlap Sending setting disables the Require Client Matter Code setting.
- C . The Client Matter Code feature provides the option to configure Authorization Level susch as in the Forced Authorization Code.
- D . Selecting the Allow Overlap Sending setting allows a user to select the Require Client Matter Code setting.

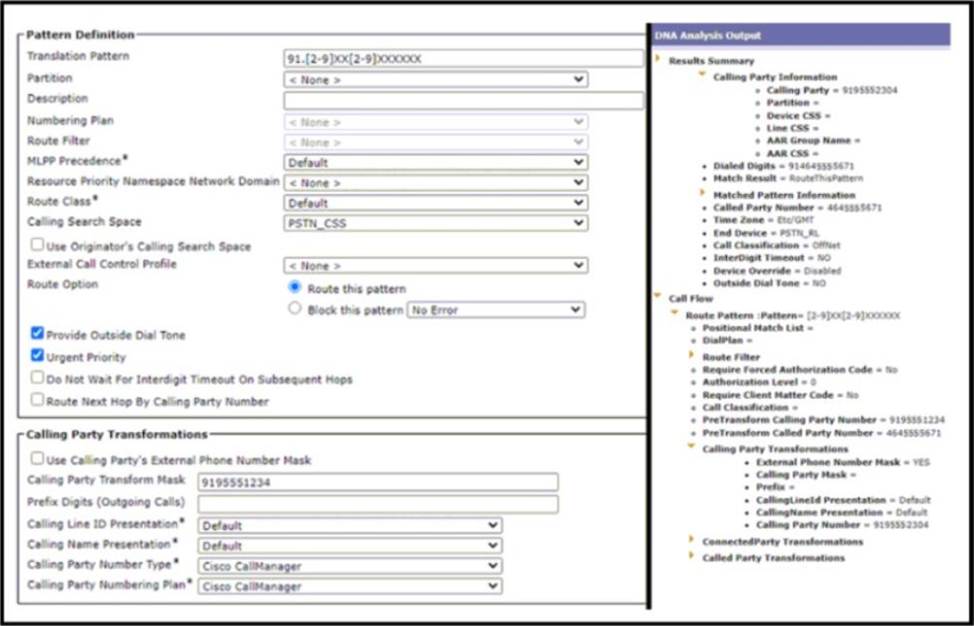

Refer to the exhibit.
For long-distance calls, users must prefix their dialed number with “91.” The translation pattern was created to strip the 91 as the PSTN expects a 10-digit number. The PSTN also requires the calling number to be set to 9195551234. However, the service provider has said calls with a different calling number are being received.
How is this issue resolved?
- A . Change the partition of the translation pattern from none to pstn_pt.
- B . Enable Force Authorization Code on the route pattern.
- C . Disable Use Calling Party’s External Phone Number Mask on the route pattern.
- D . Enable Use Calling Party’s External Phone Number Mask on the translation pattern.
End users at a new site report being unable to hear the remote party when calling or being called by users at headquarters. Calls to and from the PSTN work as expected.
To investigate the SIP signaling to troubleshoot the problem, which field can provide a hint for troubleshooting?
- A . Contact: header of the 200 OK response
- B . Allow: header if the 200 OK response
- C . o= line of SDP content
- D . c= line of SDP content

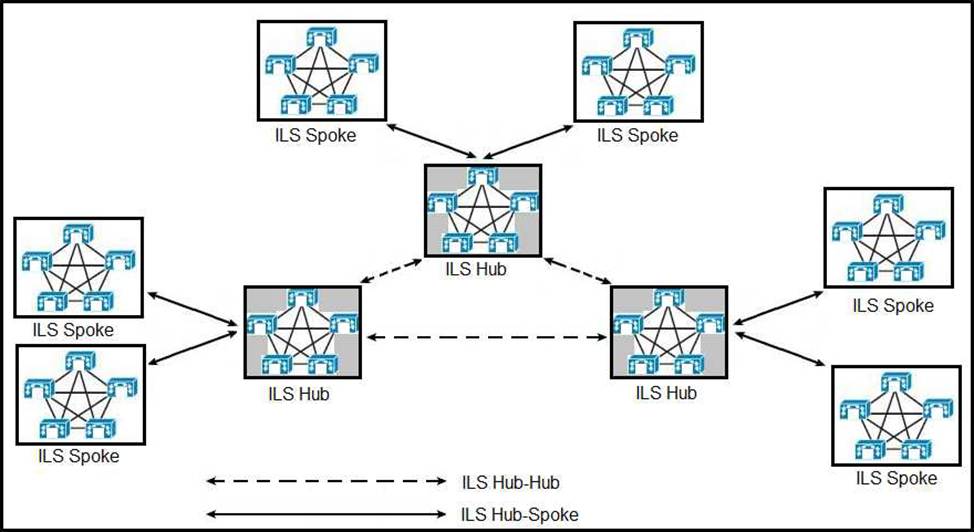

Refer to the exhibit.
How many maximum hops does an ILS update traverse?
- A . 3
- B . 6
- C . 9
- D . 12
For s SIP to SIP call flow, when does Cisco Unified Border Element require transcoding resources for DTMF?
- A . interworking between an OOB method and RFC2833 for flow-around calls
- B . interworking between h245-signal and rtp-nte
- C . interworking between an OOB method and RFC2833 for flow-through calls
- D . interworking between h245-alpha numeric and sip-kpml
A
Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-border-element/200412-DTMF-Relay-and-Interworking-on-CUBE.html#anc35
An engineer configured extension mobility to allow users to roam between phones while taking their numbers and specific device settings with them. Users are now getting "Error:-XML Error [4| Parse Error" on their phones.
Which action will resolve this issue?
- A . Set service provisioning lo internal.
- B . Lower the number of concurrent requests.
- C . Verify that the URL Is correctly configured.
- D . Set service provisioning to default.

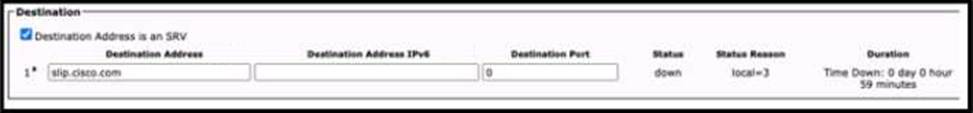

Refer to the exhibit.
A collaboration engineer is troubleshooting an issue where external callers cannot leave voicemail messages. Also, internal users report hearing the reorder tone (fast busy) when they attempt to retrieve voicemail messages from their Cisco IP phones.
Which action resolves the issue?
- A . Ensure that Cisco UCM can resolve the destination address via DNS.
- B . Start the Cisco Call Manager service at the destination.
- C . Ensure that the SIP Trunk Security Profile is configured to use UDP for transport.
- D . Verify that the correct port numbers are used for the SIP trunk.
An administrator is implementing a new dial-plan on Cisco Unified Border Element. The administrator must ensure that incoming dial-peers are matched based on the IP address from where the incoming request originates.
Which dial-peer configuration should be applied to accomplish this requirement?
- A . dial-peer voice 1 voip incoming url via
- B . dial-peer voice 1 voip incoming url request
- C . dial-peer voice 1 voip incoming called-number
- D . dial-peer voice 1 voip incoming url to
