Practice Free 300-815 Exam Online Questions
An administrator is asked to configure egress call routing by applying globalization and localization on Cisco UCM.
How should this be accomplished?
- A . Localize the calling and called numbers to PSTN format and globalize the calling and called numbers in the gateway.
- B . Globalize the calling and called numbers to PSTN format and localize the calling number in the gateway.
- C . Localize the calling and called numbers to
- D . 164 format and globalize the called number in the gateway.
- E . Globalize the calling and called numbers to
- F . 164 format and localize the called number in the gateway.

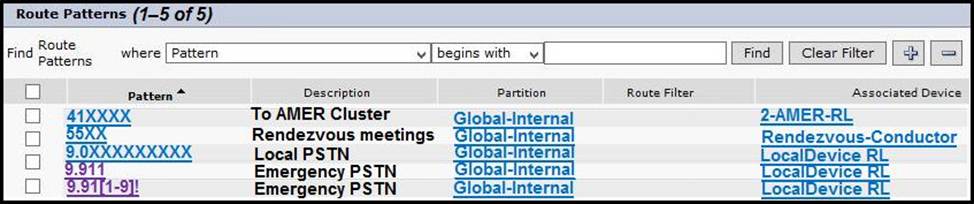

Refer to the exhibit.
Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator.
Which action resolves this issue?
- A . Adjust the service parameter T302 timet to the desired value.
- B . Adjust the service parameter T204 timer to the desired value.
- C . Check the Urgent Priority check box under 9.911 pattern.
- D . Point the emergency pattern directly to the PSTN gateway.
An administrator has a requirement that the agents that receive calls from PSTN now must have a queue to hold the calls until they can be answered, but the customer cannot afford a contact center solution. The administrator discovered a feature called Native Call Queueing on Cisco UCM.
Where must the administrator configure Native Call Queueing functionality?
- A . CTI route point
- B . hunt list
- C . hunt pilot
- D . hunt group
An engineer must configure a Cisco UCM hunt list so that calls to users in a line group are routed to the first idle user and then the next.
Which distribution algorithm must be configured to accomplish this task?
- A . top down
- B . circular
- C . broadcast
- D . longest idle time
The company Cisco UCM cluster has two different gateways for off-net calls. The current configuration uses 9 as a prefix to get to the main gateway. The secondary gateway is for any calls that start with 9713, but this is not yet configured. The admin does not want to add more route patterns other than the current 9 prefix for the gateway to the Cisco UCM.
How must the Cisco UCM be configured to meet the requirements?
- A . Configure two CSSs. then add a translation pattern with the secondary CSS to send calls with 9713 to the secondary gateway.
- B . Configure two partitions and two CSSs, then add a translation pattern with the secondary CSS to send all calls with 9713 to the secondary gateway.
- C . Create a Standard Route Group to dynamically route calls with prefix 9713 to the secondary gateway.
- D . Configure a Route Group and a Route List to send calls with prefix 9713 to the secondary gateway.
When you troubleshoot H.323 call setup, which message informs you that the called party is being notified about the call?
- A . ALERTING
- B . PROCEEDING
- C . CONNECT
- D . RINGING
An administrator is trying to apply configuration changes on Cisco CME. When the users registered on Cisco CME to dial a local number to a PSTN call, the Cisco CME sends an incorrect number of digits.
What translation rule fixes the issue and sends the correct number of digits?
- A . voice translation-rule 1 rule 1 /^4…$/2404/type any national plan any Isdn
- B . voice translation-rule 1 rule 1 ////type any subscriber plan any isdn
- C . voice translation-rule 1 rule 1 /^4…S//9132404 0/type any subscriber plan any Isdn
- D . voice translation-rule 1 rule 1 /^4…V /2404/type any subscriber plan any isdn

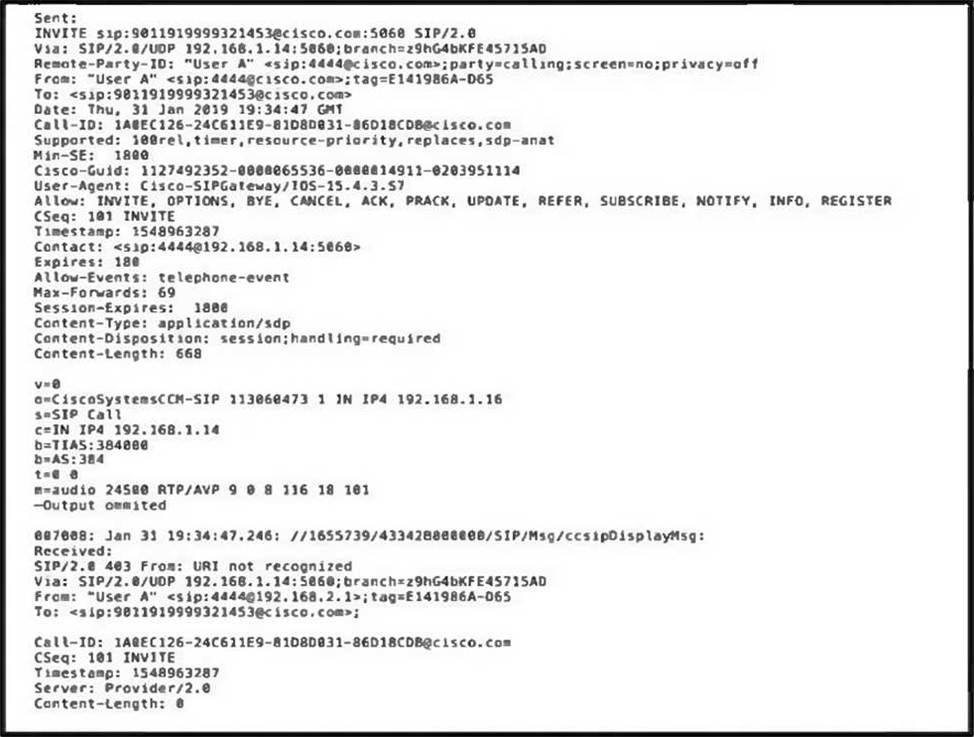

Refer to the exhibit.
An administrator is trying to test outbound calls toward the ITSP but cannot complete the call and receives a SIP error. ITSP is consulted, and the issue is that the ANI that is being sent is not the DID provided 8005532447.
Which configuration change sends the correct ANI on the INVITE sent to ITSP to fix the error?
- A . voice class sip-profiles 2
request INVITE sip-header To modify “sip:(.*)@” sip:8005532447@ - B . voice translation-rule 3
rule 1/.*//8005532447/ - C . voice class sip-profiles 1
request INVITE sip-header Diversion modify “sip:(.*)@” “sip:8005532447@” - D . voice translation-rule 4
rule 1/^.*(8005532447)//1/
When configuring hunt groups, where do you add the individual directory numbers that will be part of the group?
- A . route group
- B . line group
- C . hunt list
- D . hunt pilot
B
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/12_0_1/systemConfig/cucm_b_system-configuration-guide-1201/cucm_b_system-configuration-guide-1201_chapter_010101.html
Simplify SIP signaling.

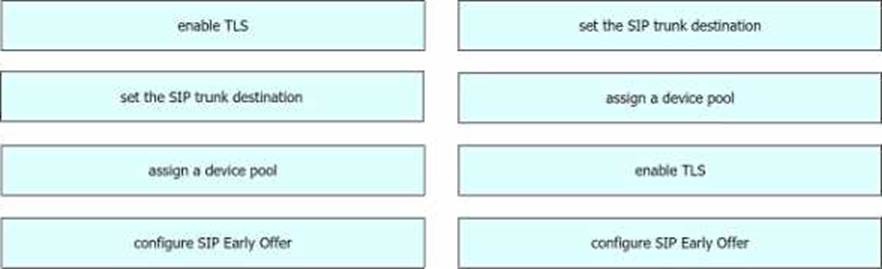

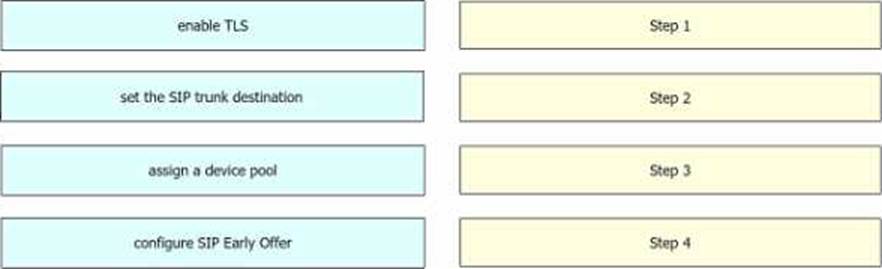

Drag and drop the Cisco UCM configuration steps from the left onto the order on the right to achieve these goals.
