Practice Free 300-815 Exam Online Questions

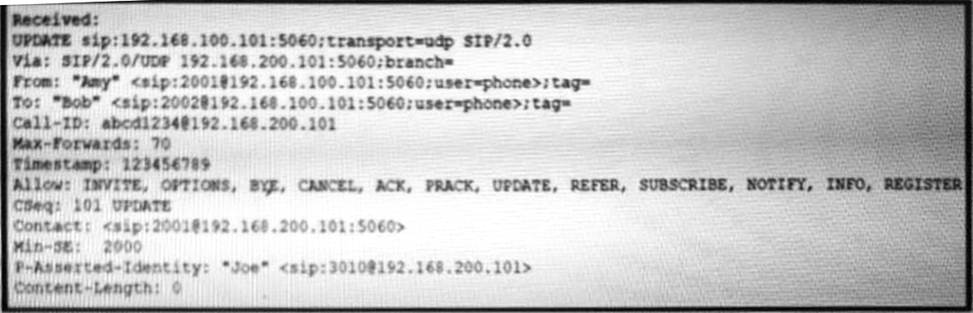

Refer to the exhibit.
An engineer is troubleshooting an issue where inbound Calls are failing after they transferred. The provider reports that update is not supported, and this is causing the calls to fail.
Which command should resolve this issue?
- A . no midcall-signaling passthru
- B . no update-callerId
- C . no contact-passig
- D . rel1xx require “100rel”
An SRST site must use pickup functionality on the Chicago remote site to allow the users to take incoming calls. The pickup command is configured under the call-manager-fallback section on the SRST router.
What are two results of that configuration? (Choose two.)
- A . The PickUp soft key is on all SRST phones.
- B . The GPickUp soft key is on all SRST phones.
- C . Calls that come into one directory number can be picked up from another directory number.
- D . Calls that come into a Cisco UCM registered phone can be picked up by a SRST phone.
- E . Calls that ring an unassigned directory number are forwarded to the auto-attendant.
An organization has decided to implement hunt groups to help with the distribution of calls between different members. The administrator must configure hunt groups on Cisco UCM.
In the configuration, at which step does an administrator have the option to configure a distribution algorithm (top down, circular, longest idle time, broadcast)?
- A . hunt group
- B . line group
- C . hunt list
- D . route list
Management wants to change the initial announcements for one of the existing call hunt groups. A new set of announcement audio file was provided.
Which two configuration steps must the administrator take to accomplish this change? (Choose two.)
- A . Identify the MOH audio source ID associated to one of the line group member’s “Network Hold MOH Audio Source”.
- B . Identify the MOH audio source ID associated to “Network Hold Source & Announcements” under the Queuing section of the hunt pilot.
- C . Identify the configured announcement names to change under the MOH audio source section, then upload the new files to the respective announcements under the Announcement section.
- D . Identify the MOH audio source ID associated to one of the line group member’s “User Hold MOH Audio Source”.
- E . Identify the configured announcement names to change under the Announcement section, and assign the uploaded files to the Queueing section of the hunt pilot.

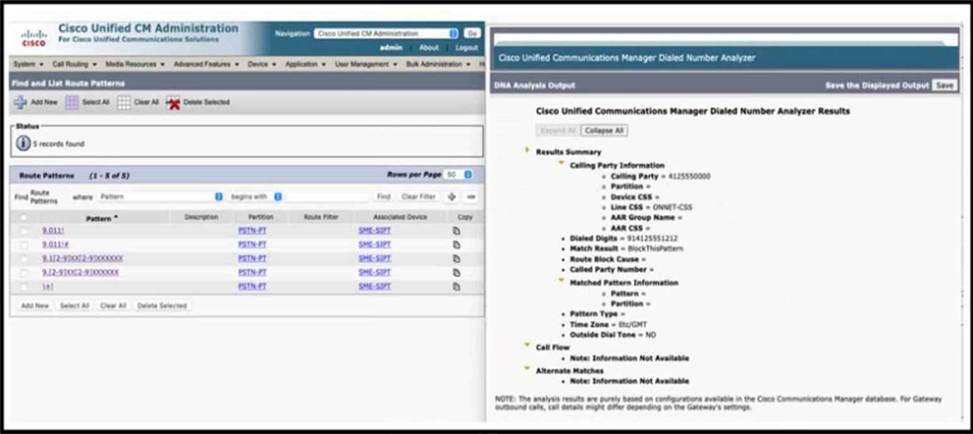

Refer to the exhibit.
A collaboration engineer is troubleshooting an issue where a user of a Cisco UCM IP phone reports failed calls when trying to dial out to the PSTN.
Which action resolves the issue?
- A . Assign a calling search space to the line or the device that has access to the route pattern.
- B . Deselect “Block this pattern” on the “Route Option” setting of the route pattern.
- C . Select the “Urgent Priority” setting on the route pattern.
- D . Instruct the user to not dial a “1” before their local area code.
An engineer Is configuring a Cisco Unified Border Element. The SIP ITSP requires a DNIS of 10-digits and DTMF tones sent in the RTP stream on the outbound leg of a call.
Which code completes this configuration?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
An administrator has configured two route patterns, 9.911 and 9.[2-9]XXXXXX. When a user dials 9911. Cisco UCM waits for the T302 timer before routing the call.
How will the administrator force interdigit timeout and route the call as soon as the user has finished dialing 9911, without waiting for the T302 timer to expire?
- A . decrease the T302 timer in Service Parameters from the default value
- B . enable Urgent Priority on the 9.[2-9]XXXXXX pattern
- C . enable Urgent Priority on the 9.911 pattern
- D . enable Device Override on both route patterns

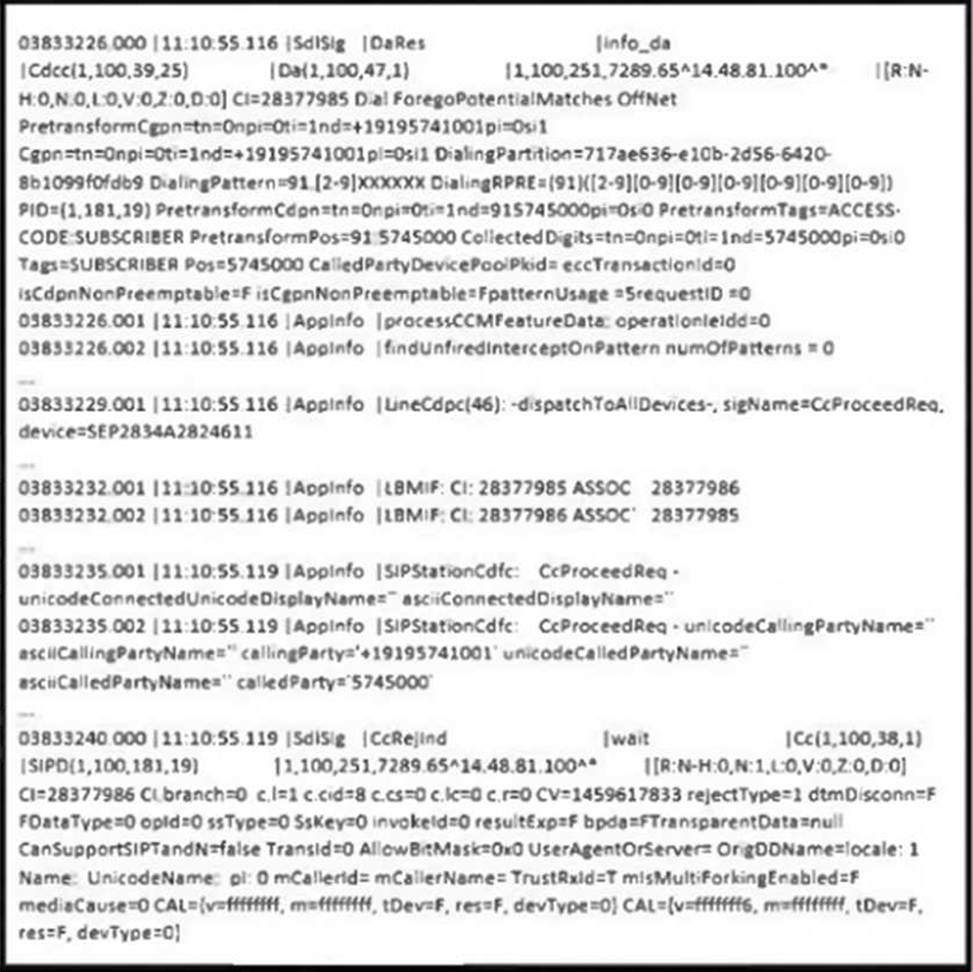

Refer to the exhibit.
An administrator configured a new SIP trunk between Cisco UCM and Cisco Unified Border Element. Calls that use this new trunk are failing, and debugs from the Cisco Unified Border Element do not show any signaling received from Cisco UCM. The administrator verified that OPTIONS is enabled on the SIP profile configured on the trunk on Cisco UCM. The route pattern matched for this call is correctly configured to send calls to the Cisco Unified Border Element using this new trunk.
What is the cause of this failure?
- A . The calling search space on the calling line/device does not contain the partition of the route pattern
- B . The called party number is not complete because it contains only 7 digits
- C . A connectivity issue between Cisco UCM and Cisco Unified Border Element prevents Cisco UCM from receiving a response to the OPTIONS it is sending to Cisco Unified Border Element
- D . There are multiple matches for the dialed number, and Cisco UCM is trying to send the call to SEP2834A2824611 rather than Cisco Unified Border Element
What is a capability of the gateway-preferred, network-based recording option in Cisco UCM?
- A . It requires SIP trunk and CTI with recording application.
- B . Cisco UCM integrates with recording destination via SIP trunk.
- C . It uses BIB of IP phone to fork audio to the recording destination.
- D . It initiates when the application (recorder) dictates that it must be initiated.
An administrator manages an environment with mobile users who commonly move between locations and take IP phones to remote sites. When mobile users are at one of the sites, users report issues with call quality, such as the audio cutting in and out. In addition, the affected area has a low bandwidth connection compared to other sites, so the administrator has put these devices in a region with an inter-region restriction of 8 kbps per call.
Which feature must the administrator configure to mitigate the issue?
- A . Location Bandwidth Manager
- B . Extension Mobility
- C . Device Mobility
- D . Extension Mobility Cross Cluster
