Practice Free 300-430 Exam Online Questions
Which CLI command do you use to shut down the 2.4 GHz radio of the Floor1_AP1 AP on a Cisco 3850 Switch?
- A . ap name Floor1_AP1 dot11 shutdown 24ghz
- B . ap name Floor1_AP1 dot11 5ghz shutdown
- C . ap name Floor1 AP1 dot11 24ghz shutdown
- D . ap name Floor1_AP1 shutdown dot11 24ghz
You enter the command or a Cisco Catalyst 3850 Series Switch that runs Cisco ISO XE.
What does the command do?
- A . It defines the user identity or the device identity to be validated by the RADIUS server.
- B . It captures information on the length of the authorized session, as well as the bandwidth usage of the client.
- C . It defines the RADIUS server used to track which sessions are still active.
- D . It defines the level of access of the user or the device.
An engineer is in the process of implementing Fastiane on a wireless network with a Mobility Express AP installed and Apple end-user devices. Due to a security concern, the IT department has updated all the iPads to version 14.5.423551943.
Which QoS profile must the engineer configure on the userWLAN?
- A . Platinum
- B . Best Effort
- C . Bronze
- D . Silver

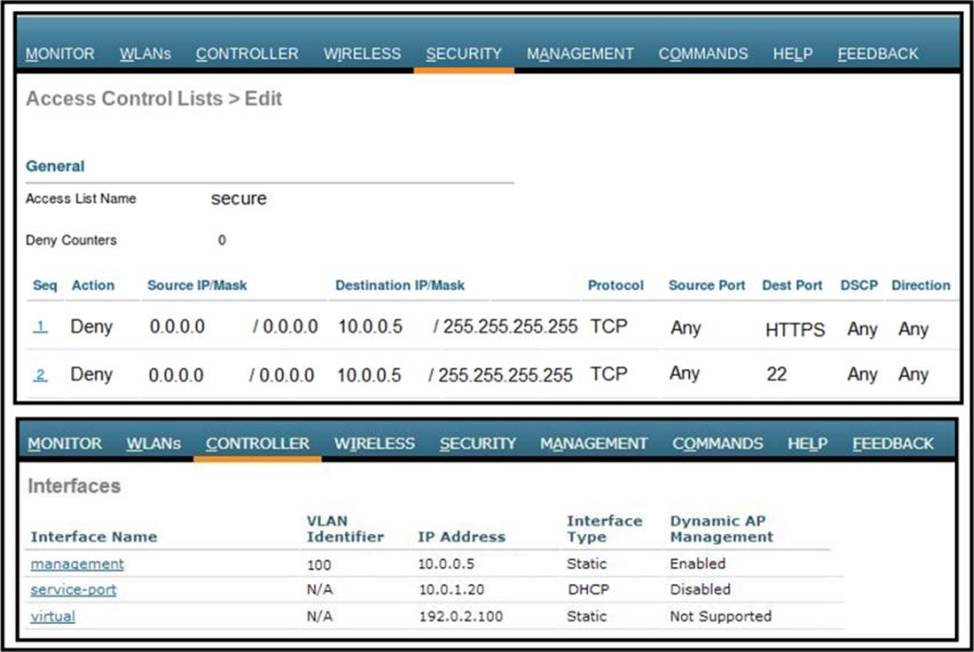

Refer to the exhibit.
An engineer implemented the CPU ACL on your Cisco 5520 Series Wireless LAN Controller, and the controller is no longer manageable via the network.
What must be changes on this CPU ACL to enable it to manage the controller again?
- A . Permit statements must be added to the top of the ACL in both directions, which specify the network to be managed from and the virtual interface of the controller.
- B . Line 1 must be set to a destination port of HTTP.
- C . Permit statements must be added to the top of the ACL, which specify the network to be managed from.
- D . Line 1 must be set to the inbound direction.
A wireless engineer needs to implement client tracking.
Which method does the angle of arrival use to determine the location of a wireless device?
- A . received signal strength
- B . triangulation
- C . time distance of arrival
- D . angle of incidence
B
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Mobility/WiFiLBS-DG/wifich2.html
You plan to implement Cisco Identity Based Networking Services on a Cisco Catalyst 3850 Series Switch.
Which switch command is required when configuring downloadable ACLs?
- A . authentication display new-style
- B . ip device tracking
- C . dot1x system-auth-control
- D . aaa session-id common
An engineer is implementing Cisco Identity-Based Networking on a Cisco AireOS controller. The engineer has two ACLs on the controller. The first ACL, named BASE_ACL, is applied to the corporate_clients interface on the WLC, which is used for all corporate clients. The second ACL, named HR_ACL, is referenced by ISE in the Human Resources group policy.
What is the resulting ACL when a Human Resources user connects?
- A . HR_ACL appended with BASE_ACL
- B . HR_ACL only
- C . BASE_ACL appended with HR_ACL
- D . BASE_ACL only

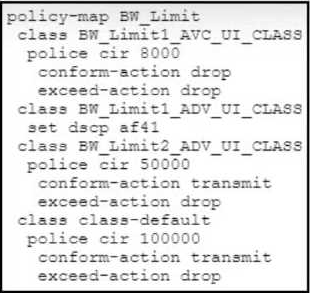

Refer to the exhibit.
A university network administrator notices that wireless guest users consume a significant amount of uplink internet bzjjlwidth in the library, which causes throughput issues on staff SSID.
To throttle this bandwidth use, the administrator intends to configure a QoS policy for guests that:

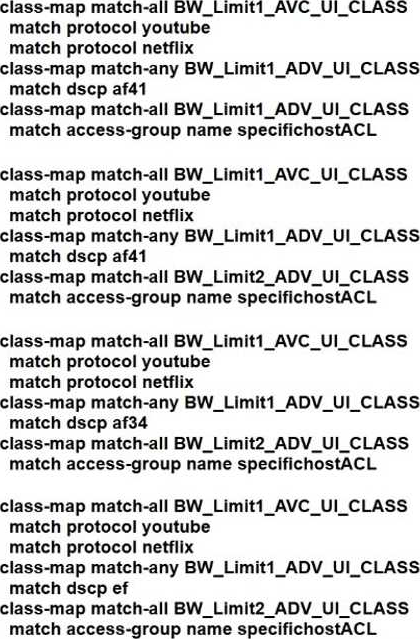

Which class-map configuration must the administrator implement?
- A . Option A
- B . Option B
- C . Option C
- D . Option D
A wireless controller has a RADIUS server configured globally. Another RADIUS server is mapped for WLAN A in this controller.
Which RADIUS server does the controller use for authenticating clients from WLAN A?
- A . RADIUS server that is globally configured
- B . first the RADIUS server that is mapped for WLAN A, and if authentication fails, it reverts to the RADIUS server that is globally configured
- C . RADIUS server that is mapped for WLAN A
- D . first the RADIUS server that is globally configured, and if authentication fails, it reverts to the RADIUS server that is mapped for WLAN A
A network engineer must segregate all IPads on the guest WLAN to a separate VLAN.
How does the engineer accomplish this task without using CiscoISE?
- A . Create a local policy on the WLC.
- B . Use 802.1x authentication to profile the devices.
- C . Use an mDNS profile for the iPad device.
- D . Enable RADIUS DHCP profiling on the WLAN.
