Practice Free 300-430 Exam Online Questions
An engineer is troubleshooting rogue access points that are showing up in Cisco Prime Infrastructure.
What is maximum number of APS the engineer can use to contain an identified rogue access point in the WLC?
- A . 3
- B . 4
- C . 6
- D . 5
A wireless engineer deployed all remote sites as FlexConnect. The client VLAN assignment on these sites is configured manually mapped by WLAN and using local switching. Dynamic VLAN assignment is provided by the newly deployed Cisco ISE.
Which IETF attribute must be configured on the AAA server to send that VLAN ID?
- A . Tunnel-Medium-Type
- B . Tunnel-Client-Endpoint
- C . Tunnel-Assignment-ID
- D . Tunnel-Private-Group-ID
An engineer must run a Client Traffic Stream Metrics report in Cisco Prime Infrastructure.
Which task must be run before the report?
- A . scheduled report
- B . radio performance
- C . client status
- D . software
C
Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/2-0/user/guide/prime_infra_ug/reps.html
An engineer added more APs to newly renovated areas in building. The engineer is now receiving Out-of-Sync alarms on Cisco Prime Infrastructure.
Which two actions resolve this issue? (Choose two.)
- A . Manually synchronize from Cisco Prime Infrastructure.
- B . Manually synchronize from MSE.
- C . Enable automatic synchronization on Cisco Prime Infrastructure.
- D . Enable automatic synchronization on MSE.
- E . Add new APs to maps on Cisco Prime Infrastructure.

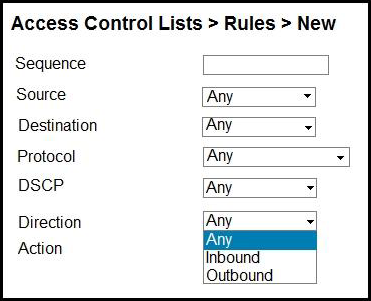

Refer to the exhibit.
An engineer is creating an ACL to restrict some traffic to the WLC CPU.
Which selection must be made from the direction drop- down list?
- A . It must be Inbound because traffic goes to the WLC.
- B . Packet direction has no significance; it is always Any.
- C . It must be Outbound because it is traffic that is generated from the WLC.
- D . To have the complete list of options, the CPU ACL must be created only by the CLI.
A multitenant building contains known wireless networks in most of the suites. Rogues must be classified in the WLC.
How are the competing wireless APs classified?
- A . adhoc
- B . friendly
- C . malicious
- D . unclassified
An engineer set up a VoWLAN with QoS on the WLC and a class map on the switch, but the markings are not being preserved correctly in the end-to- end traffic flow.
Which two configurations on the wired network ensure end-to-end QoS? (Choose two.)
- A . trust boundaries
- B . access lists
- C . policy maps
- D . QoS licenses
- E . NetFlow
Which two restrictions are in place with regards to configuring mDNS? (Choose two.)
- A . mDNS uses only UDP port 5436 as a destination port.
- B . mDNS cannot use UDP port 5353 as the destination port.
- C . mDNS is not supported on FlexConnect APs with a locally switched WLAN.
- D . Controller software must be newer than 7.0.6+.
- E . mDNS is not supported over IPv6.
Refer to the exhibit.
A wireless engineer has integrated the wireless network with a RADIUS server. Although the configuration on the RADIUS is correct, users are reporting that they are unable to connect. During troubleshooting, the engineer notices that the authentication requests are being dropped.
Which action will resolve the issue?
- A . Allow connectivity from the wireless controller to the IP of the RADIUS server.
- B . Provide a valid client username that has been configured on the RADIUS server.
- C . Configure the shared-secret keys on the controller and the RADIUS server.
- D . Authenticate the client using the same EAP type that has been set up on the RADIUS server.
An engineer is configuring multicast for two WLCs. The controllers are in different physical locations and each handles around 500 wireless clients.
How should the CAPWAP multicast group address be assigned during configuration?
- A . Each WLC must be assigned a unique multicast group address.
- B . Each WLC management address must be in the same multicast group.
- C . Both WLCs must be assigned the same multicast group address.
- D . Each WLC management address must be in a different multicast group.
