Practice Free 200-301 Exam Online Questions
What is a function of the Cisco DNA Center Overall Health Dashboard?
- A . It provides a summary of the top 10 global issues.
- B . It provides detailed activity logging for the 10 devices and users on the network.
- C . It summarizes the operational status of each wireless devise on the network.
- D . It summarizes daily and weekly CPU usage for servers and workstations in the network.
What is a similarity OM3 and OM4 fiber optical cable?
- A . Both have a 62.5 micron core diameter.
- B . Both have a 50 micron core diameter.
- C . Both have a 100 micron core diameter.
- D . Both have a 9 micron core diameter.
Which device controls the forwarding of authentication requests for users when connecting to the network using a lightweight access point?
- A . TACACS server
- B . wireless access point
- C . RADIUS server
- D . wireless LAN controller

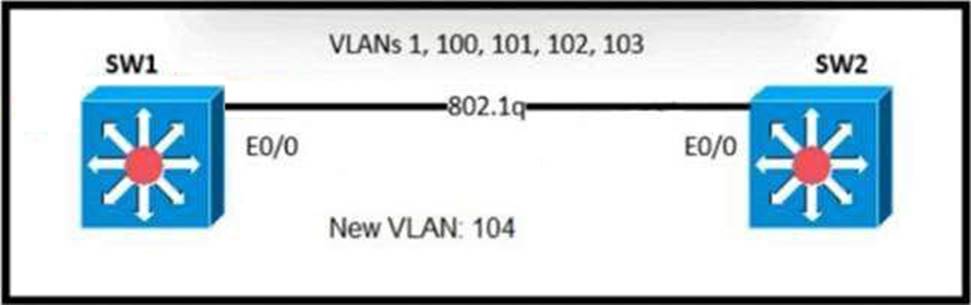

Refer to the exhibit.
An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured.
Which command accomplishes this task?
- A . switchport trunk allowed vlan 100-104
- B . switchport trunk allowed vlan add 104
- C . switchport trunk allowed vlan all
- D . switchport trunk allowed vlan 104
Refer to the exhibit.
Which prefix did router R1 learn from internal EIGRP?
- A . 192.168.10/24
- B . 192.168.3.0/24
- C . 192.168.2.0/24
- D . 172.16 1.0/24

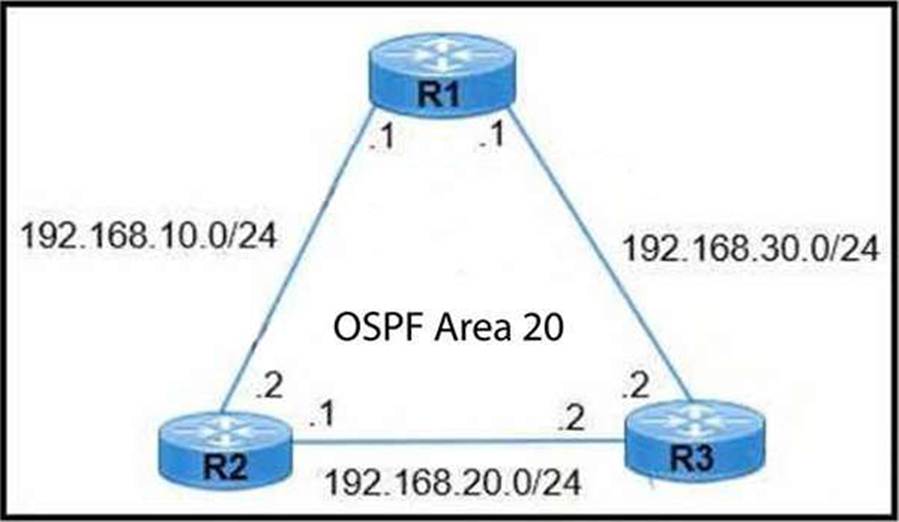

Refer to the exhibit.
R1 learns all routes via OSPF.
Which command configures a backup static route on R1 to reach the 192.168.20.0/24 network via R3?
- A . R1(config)#ip route 192.168.20.0 255.255.0.0 192.168.30.2
- B . R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 90
- C . R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 111
- D . R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2

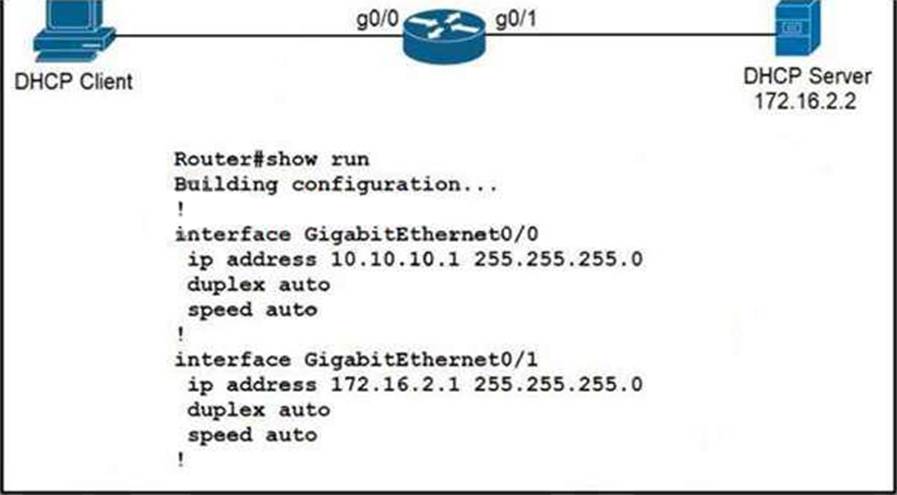

Refer to the exhibit.
An engineer is configuring a new router on the network and applied this configuration.
Which additional configuration allows the PC to obtain its IP address from a DHCP server?
- A . Configure the ip dhcp relay information command under interface Gi0/1.
- B . Configure the ip dhcp smart-relay command globally on the router
- C . Configure the ip helper-address 172.16.2.2 command under interface Gi0/0
- D . Configure the ip address dhcp command under interface Gi0/0
A network administrator is asked to configure VLANS 2, 3 and 4 for a new implementation. Some ports must be assigned to the new VLANS with unused remaining.
Which action should be taken for the unused ports?
- A . configure port in the native VLAN
- B . configure ports in a black hole VLAN
- C . configure in a nondefault native VLAN
- D . configure ports as access ports

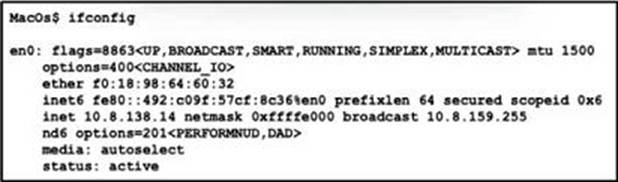

Refer to the exhibit.
A network engineer must provide configured IP addressing details to investigate a firewall rule Issue.
Which subnet and mask Identify what is configured on the en0 interface?
- A . 10.8.0.0/16
- B . 10.8.64.0/18
- C . 10.8.128.0/19
- D . 10.8.138.0/24

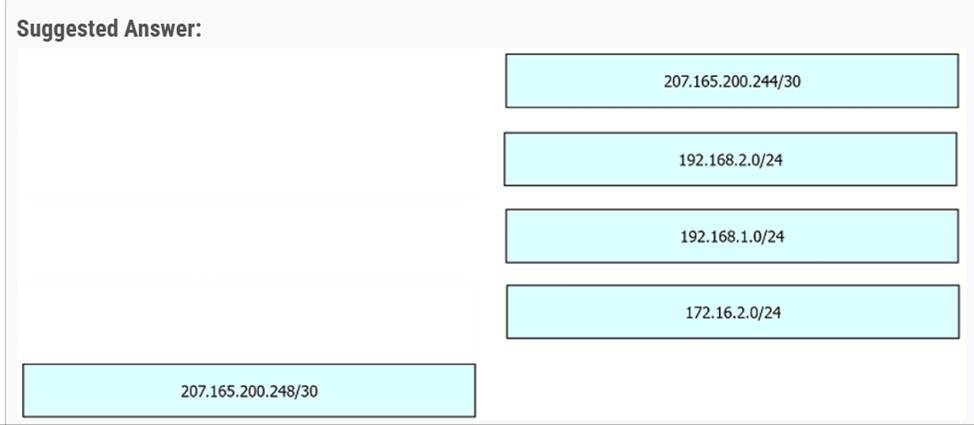

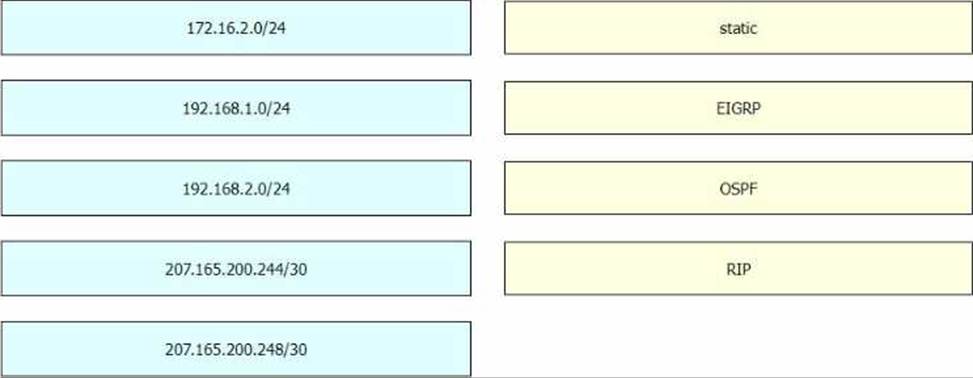

DRAG DROP

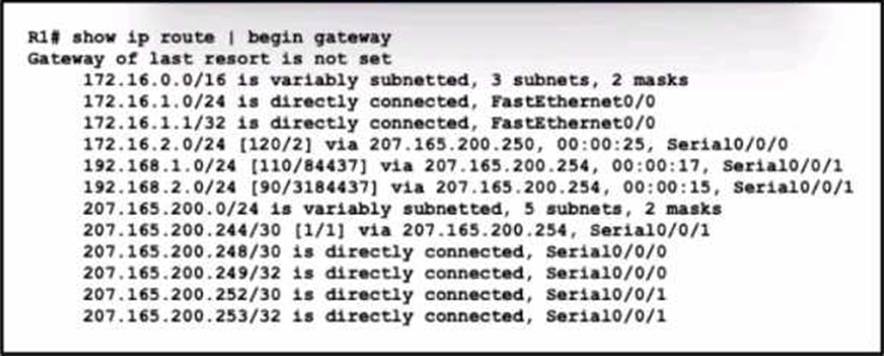

Refer to the Exhibit.
Drag and drop the learned prefixes from the left onto the preferred route methods from which they were learned on the right.
