Practice Free 200-301 Exam Online Questions
What is an advantage of using auto mode versus static mode for power allocation when an access point is connected to a PoE switch port?
- A . All four pairs of the cable are used
- B . It detects the device is a powered device
- C . The default level is used for the access point
- D . Power policing is enabled at the same time
Which protocol requires authentication to transfer a backup configuration file from a router to a remote server?
- A . DTP
- B . FTP
- C . SMTP
- D . TFTP
OSPF must be configured between routers R1 and R2.
Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?
- A . router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf network broadcast - B . router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf network point-to-point - C . router ospf 1
network 192.168.1.1 0.0.0.0 area 0
interface e1/1
ip address 192.168.1.1 255.255.255.252
ip ospf cost 0 - D . router ospf 1
network 192.168.1.1 0.0.0.0 area 0
hello interval 15
interface e1/1
Ip address 192.168.1.1 255.255.255.252

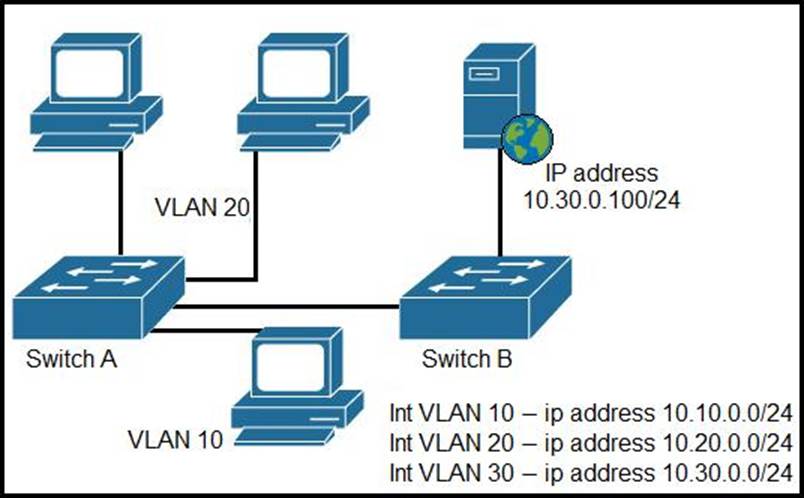

Refer to the exhibit.
A network engineer must block access for all computers on VLAN 20 to the web server via HTTP All other computers must be able to access the web server.
Which configuration when applied to switch A accomplishes this task?

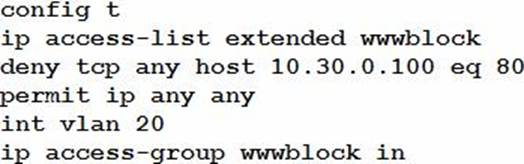

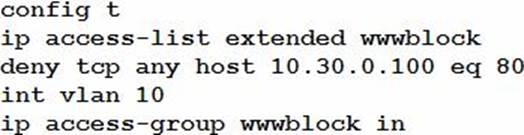

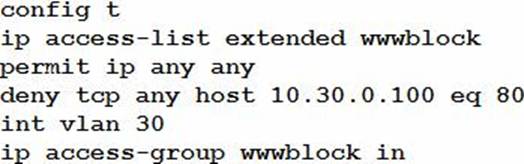

A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D
What provides centralized control of authentication and roaming In an enterprise network?
- A . a lightweight access point
- B . a firewall
- C . a wireless LAN controller
- D . a LAN switch
A network administrator enabled port security on a switch interface connected to a printer.
What is the next configuration action in order to allow the port to learn the MAC address of the printer and insert it into the table automatically?
- A . enable dynamic MAC address learning
- B . implement static MAC addressing.
- C . enable sticky MAC addressing
- D . implement auto MAC address learning
What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?
- A . The Layer 2 switch drops the received frame
- B . The Layer 2 switch floods packets to all ports except the receiving port in the given VLAN.
- C . The Layer 2 switch sends a copy of a packet to CPU for destination MAC address learning.
- D . The Layer 2 switch forwards the packet and adds the destination MAC address to its MAC address table
B
Explanation:
If the destination MAC address is not in the CAM table (unknown destination MAC address), the switch sends the frame out all other ports that are in the same VLAN as the received frame. This is called flooding. It does not flood the frame out the same port on which the frame was received.
Which command implies the use of SNMPv3?
- A . snmp-server host
- B . snmp-server community
- C . snmp-server enable traps
- D . snmp-server user
A user configured OSPF in a single area between two routers A serial interface connecting R1 and R2 is running encapsulation PPP By default which OSPF network type is seen on this interface when the user types show ip ospf interface on R1 or R2?
- A . port-to-multipoint
- B . broadcast
- C . point-to-point
- D . nonbroadcast
C
Explanation:
The default OSPF network type for HDLC and PPP on Serial link is point-to-point (while the default OSPF network type for Ethernet link is Broadcast).
What is a characteristic of RSA?
- A . It uses preshared keys for encryption
- B . It requires both sides to have identical keys
- C . It is a private-key encryption algorithm
- D . It is a public-key cryptosystem
